Kwik-Guard® 240kN Single Height Class 1 Guardrail: Crash-Tested, AS1170-Compliant Barriers for Car Parks, Warehouses & High-Traffic Zones

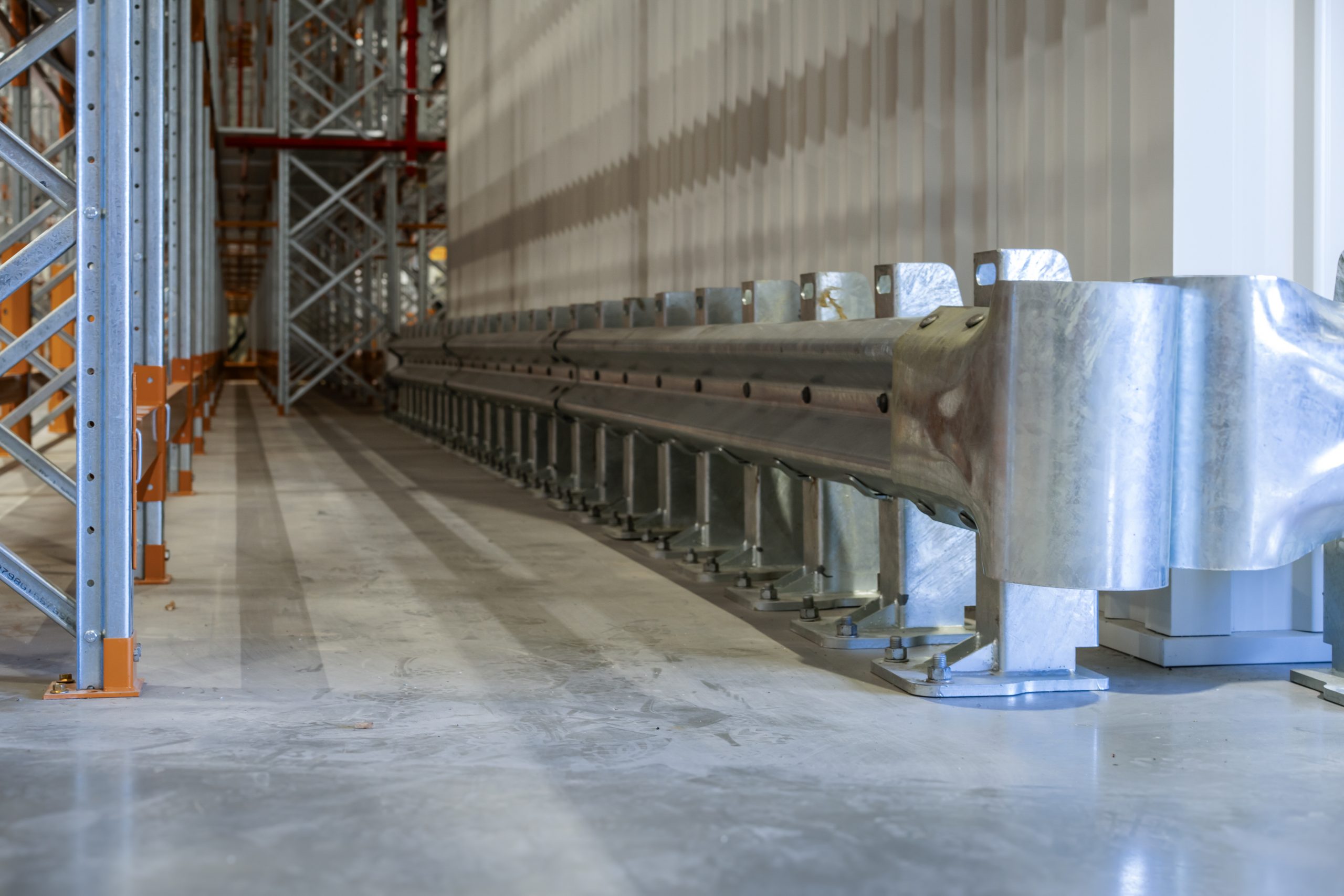

Engineered for high-traffic environments, Kwik-Guard’s 240kN Guardrail delivers superior asset and pedestrian protection. This Class 1 system is independently crash-tested to surpass AS/NZS 1170.1 requirements, handling forces exceeding 240kN with minimal deflection. Designed for 200mm slabs, the top-mount base plate uses 150mm Chemset fixings for rapid, secure installation. It delivers a low-profile, high-strength solution, making it ideal for multi-level carparks, steep ramps, and heavy-duty industrial warehouses.

Independently Crash-Tested 240kN Impact Protection for Carparks, Ramps & Heavy-Duty Industrial Warehouses

Kwik-Guard ‘s 240kN Single Height Guardrail is more than a barrier; it is a precision-engineered safety system designed to exceed AS/NZS 1170.1 impact standards.

Independently crash-tested to withstand forces over 240kN, this Class 1 guardrail provides robust containment for vehicles and pedestrians in high-velocity zones like multi-level carpark ramps and busy warehouse bays.

Despite its heavy-duty performance, the top-mount, base-plated design maintains a clean, low-profile aesthetic. Designed for a minimum 200mm slab, it utilizes 150mm Chemset fixings for a secure, deep-embedment anchor that minimises deflection during impact.

Whether you are retrofitting an existing facility or managing a new tier-one build, Kwik-Guard® ensures your project remains compliant, durable, and safe.

Explore our technical data sheets to see how Kwik-Guard fits your next project.

Features

AS-Compliant Structural Protection for High-Risk Traffic Zones

Superior 240kN Impact Resistance

Built to withstand forces exceeding 240kN, this Class 1 barrier offers maximum containment with minimal deflection. It is specifically engineered to stop vehicle momentum on steep ramps and within multi-level carparks, protecting the building’s structural integrity.

Independently Certified Protection

Every Kwik-Guard system is independently crash-tested to surpass AS/NZS 1170.1 standards. This ensures your project meets rigorous safety compliance while providing a reliable shield for both pedestrians and vehicles in high-risk zones.

Optimised for Standard Concrete Slabs

Designed for versatility, the system requires a minimum slab thickness of 200mm. By utilising a 150mm fixing embedment depth, the guardrail achieves a rock-solid anchor without compromising the reinforcement of standard commercial floor plates.

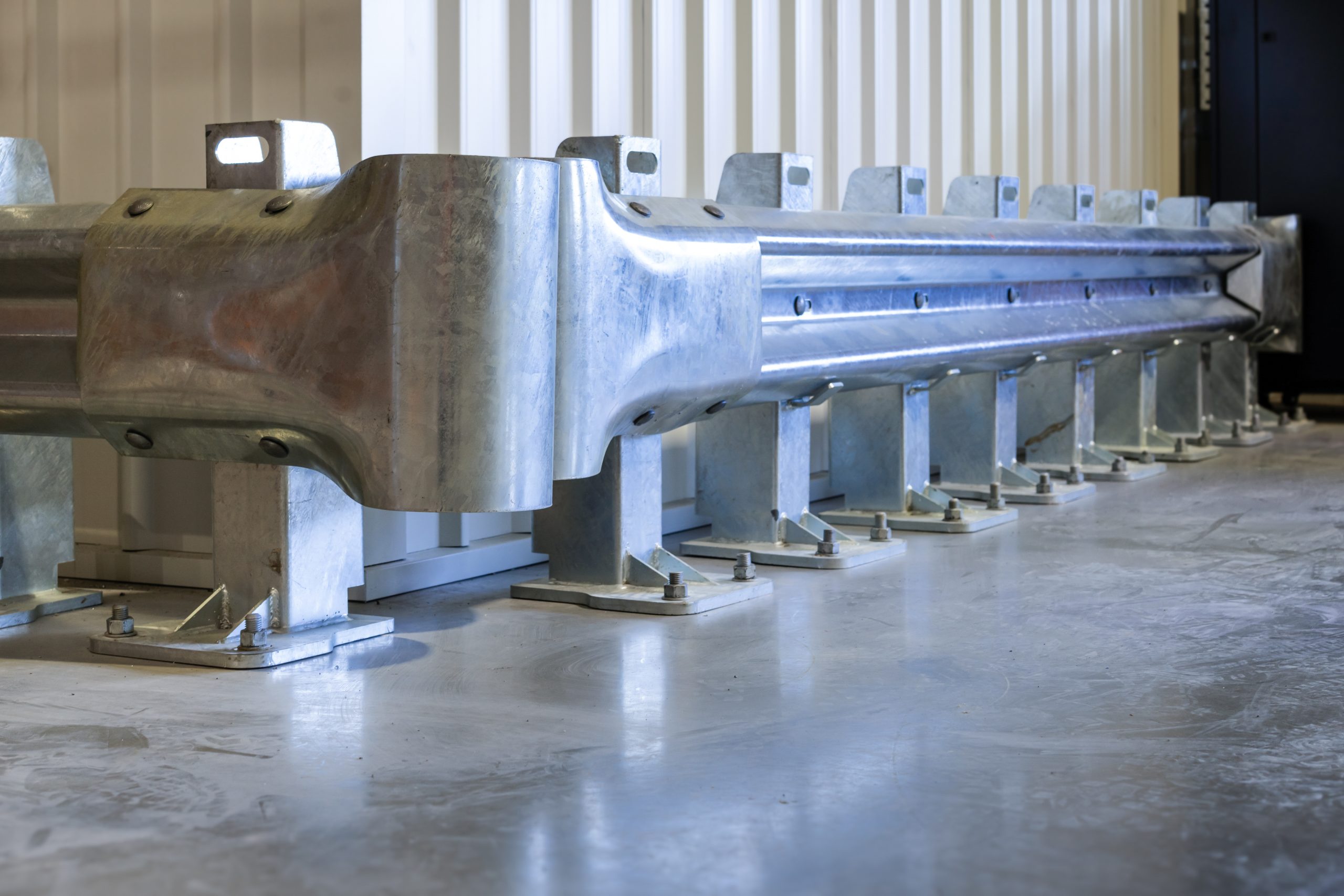

Rapid Top-Mount Installation

The base-plated design is engineered for efficiency on-site. Using a 22mm drill diameter and high-strength Chemset fixings, contractors can achieve a precise, top-mount installation that significantly reduces labour time compared to traditional cast-in systems.

DESIGN: Crash-Tested, Proven, and Built for Australian Conditions

Low-Profile Architectural Finish

Standing at a system height of 640mm, the Kwik-Guard offers a sleek, unobtrusive silhouette. This low-profile design ensures clear sightlines for drivers in multi-level carparks and maintains an open, professional aesthetic without compromising on Class 1 safety.

Deep-Embedment Structural Anchoring

With a fixing embedment depth of 150mm and a total drill depth of 155mm, the design prioritises structural leverage. This ensures that the massive 240kN impact force is distributed effectively through the slab, significantly reducing deflection during a vehicle strike.

Optimised for 200mm Concrete Slabs

Engineered specifically for modern commercial builds, this system is designed for a minimum slab thickness of 200mm. This allows consulting engineers to specify a high-impact 240kN barrier that integrates seamlessly with standard structural floor plates.

Space-Efficient Top-Mount Configuration

The base-plated, top-mount design is a triumph of spatial efficiency. By utilizing a 22mm drill diameter for Chemset fixings, the system can be installed close to perimeter edges and ramps, maximizing usable floor space in tight warehouse or parking environments.

Versatile Infrastructure Integration

From multi-level carparks and ramps to large commercial projects, the Kwik-Guard design is versatile enough for any commercial application. Its robust, modular nature allows it to be configured for long straight runs or complex ramp geometries with ease.

APPLICATIONS: Engineering-Grade Protection for Public & Commercial Infrastructure

The Kwik-Guard 240kN system is purpose-built for versatility for high-traffic commercial and public environments. Independently crash-tested to surpass AS/NZS 1170.1 standards, this Class 1 barrier provides a low-profile, high-strength solution for spaces where pedestrian and vehicle safety is paramount. Its top-mount design and 150mm Chemset fixing depth ensure rapid, secure installation on standard 200mm concrete slabs.

Guard R Guardrail

AVAILABLE NOW: Ready-to-Install Guardrails for Your Project

We maintain appropriate stockholdings of Kwik-Guard’s 240kN system to ensure projects remain on schedule. Our inventory includes key components for Class 1 installations, including base-plated top-mount rails and high-strength 150mm Chemset fixings ready for immediate dispatch. Whether you are upgrading a multi-storey carpark or securing an industrial warehouse, we are ready to provide rapid delivery across Australia to help meet critical site deadlines.

Kwik-Guard® W-Beam Rail 4000mm – HDG WB-R4000-HDG

Kwik-Guard® W-Beam Rail 2000mm – HDG WB-R2000-HDG

Kwik-Guard® W-Beam Rail 1000mm – HDG WB-R1000-HDG

Kwik-Guard® W-Beam Bullnose Terminal – HDG WB-BT-HDG

Kwik-Guard® W-Beam Single Height Post – In-Ground WB-SHP-IG

Kwik-Guard® W-Beam Single Height Post – with Base Plate

Kwik-Guard® W-Beam Double Height Post – with Base Plate

Kwik-Guard® W-Beam Handrail Attachment WB-HR

Gal Pipe 32XL @ 6500 GP32XL65

M16 x 125 Gal Wedge Anchor M16125-WA

M16 x 50 Cup Head Bolt/Washer/Nut M1650-CH

M16 x 32 Cup Head Bolt/Nut (8/rail) M1632-CH

Guard-R W-Beam Spacer Block WB-SB

M16 x 40 Hex Head Bolt/Washer/Nut M1640-HH

Galvanised

Yellow Powder Coated

Other colours upon request

Book a Consultation: Get Project-Specific Support

Receive project-specific guidance from our technical experts, including compliance advice, system configuration, and AS1170 crash-tested certification support.
