Certified to exceed AS/NZS 1170.1 standards, the Kwik-Guard Single Height Edge Mount Class 3 system is independently crash-tested to surpass 30kN impact loads. This robust barrier provides compliant protection for vehicles and pedestrians in busy car parks and warehouses. By utilising an edge-mount configuration, it maximises usable floor space on 150mm slabs while integrating a 1100mm-high handrail. It’s the preferred, high-performance choice for securing modern commercial infrastructure.
The Kwik-Guard Single Height Edge Mount Class 3 system offers a proven, robust solution for projects where safety compliance and spatial efficiency are key priorities.
Independently crash-tested to surpass AS/NZS 1170.1 30kN impact loads, the system provides a high-strength vehicle barrier while incorporating an integrated 1100mm pedestrian handrail. Its intelligent edge-mount design is engineered for slabs with a minimum 150mm thickness, allowing builders to maximise usable floor area on ramps and perimeters.
Whether securing a commercial car park or an industrial warehouse, the galvanised 32NB pipe construction ensures long-term durability against heavy use. For those prioritising site safety and structural integrity, it offers a versatile, low-maintenance choice for modern commercial infrastructure.
Reach out to our technical team to discuss how Kwik-Guard® can be integrated into your next project.
Proven High-Impact Protection
Independently crash-tested to surpass AS/NZS 1170.1 30kN impact loads, this system provides a robust safety barrier for high-traffic zones. It ensures your facility meets strict Australian standards for vehicle and pedestrian safety in car parks and warehouses.
Space-Efficient Engineering
The intelligent edge-mount configuration installs directly at the slab perimeter, reclaiming valuable square meterage on ramps and levels. This design is ideal for projects where every millimetre of usable space counts toward overall project efficiency and ROI.
Precision Engineering for Standard Slabs
Optimised for a minimum slab thickness of 150mm, the system utilizes high-performance Iccons Thru-Bolt PRO anchors with a 114mm embedment depth. This ensures a secure, permanent fix that maintains structural integrity even under significant impact forces.
Industrial-Grade Durability
Constructed from hot-dipped galvanised 32NB pipe, the Kwik-Guard® system is built to withstand harsh roadside and industrial environments. Its corrosion-resistant finish ensures long-term durability and a professional aesthetic with minimal ongoing maintenance.

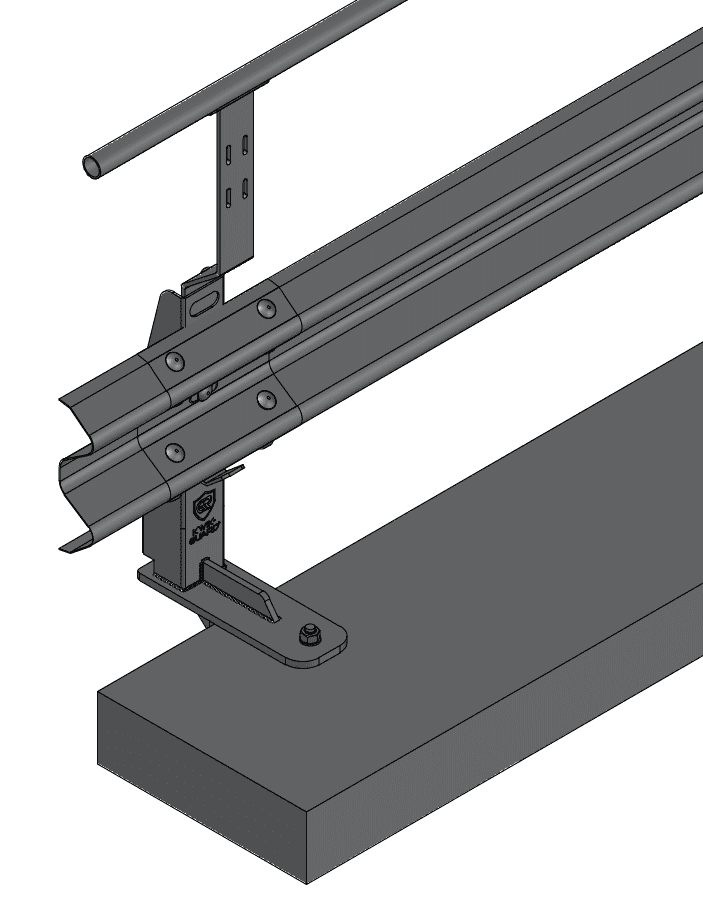

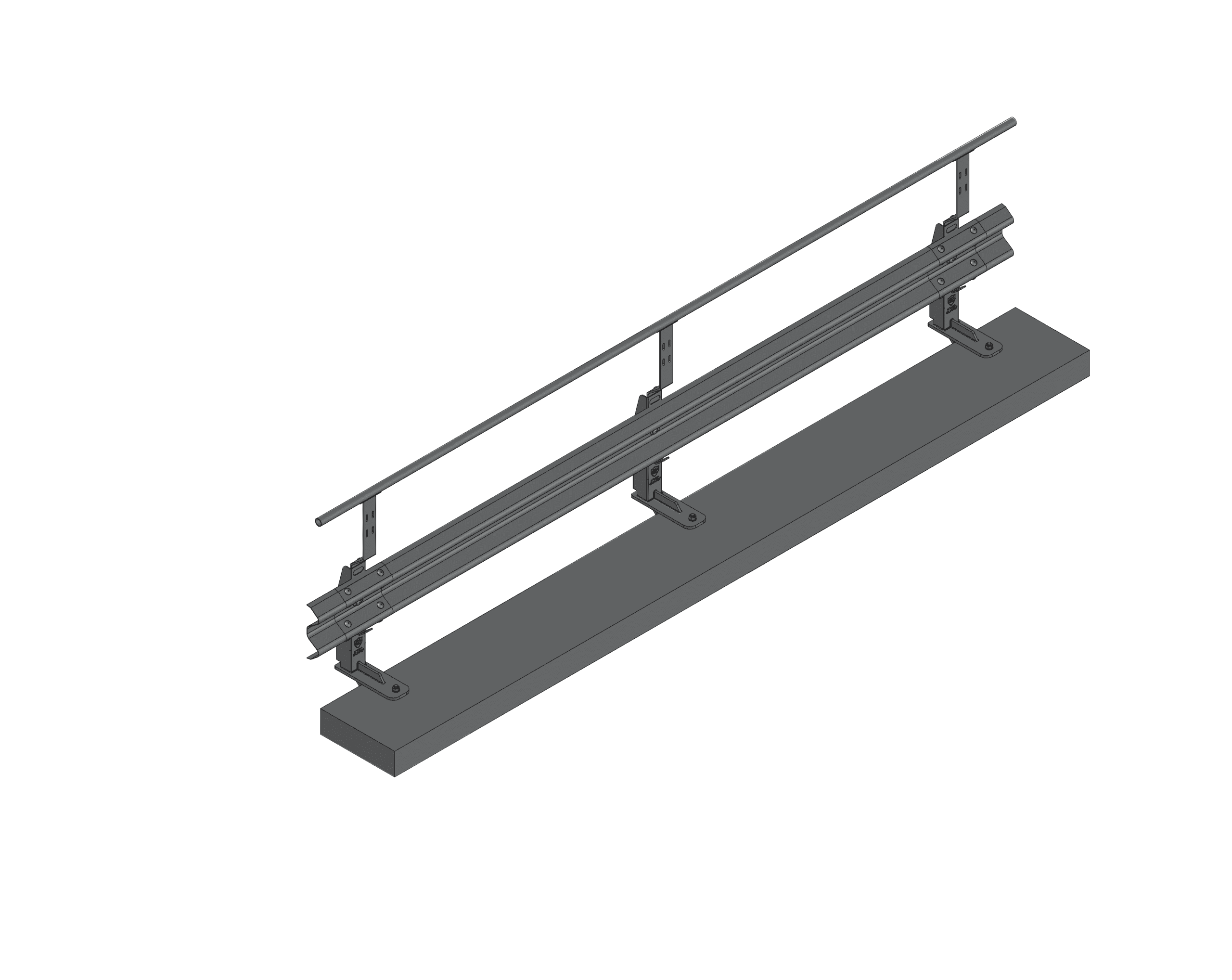

The intelligent edge-mount design positions the base-plated configuration at the absolute perimeter of the slab. This architectural choice reclaims valuable floor space on narrow ramps and tight car park levels, ensuring safety barriers do not obstruct vehicle flow or pedestrian movement.

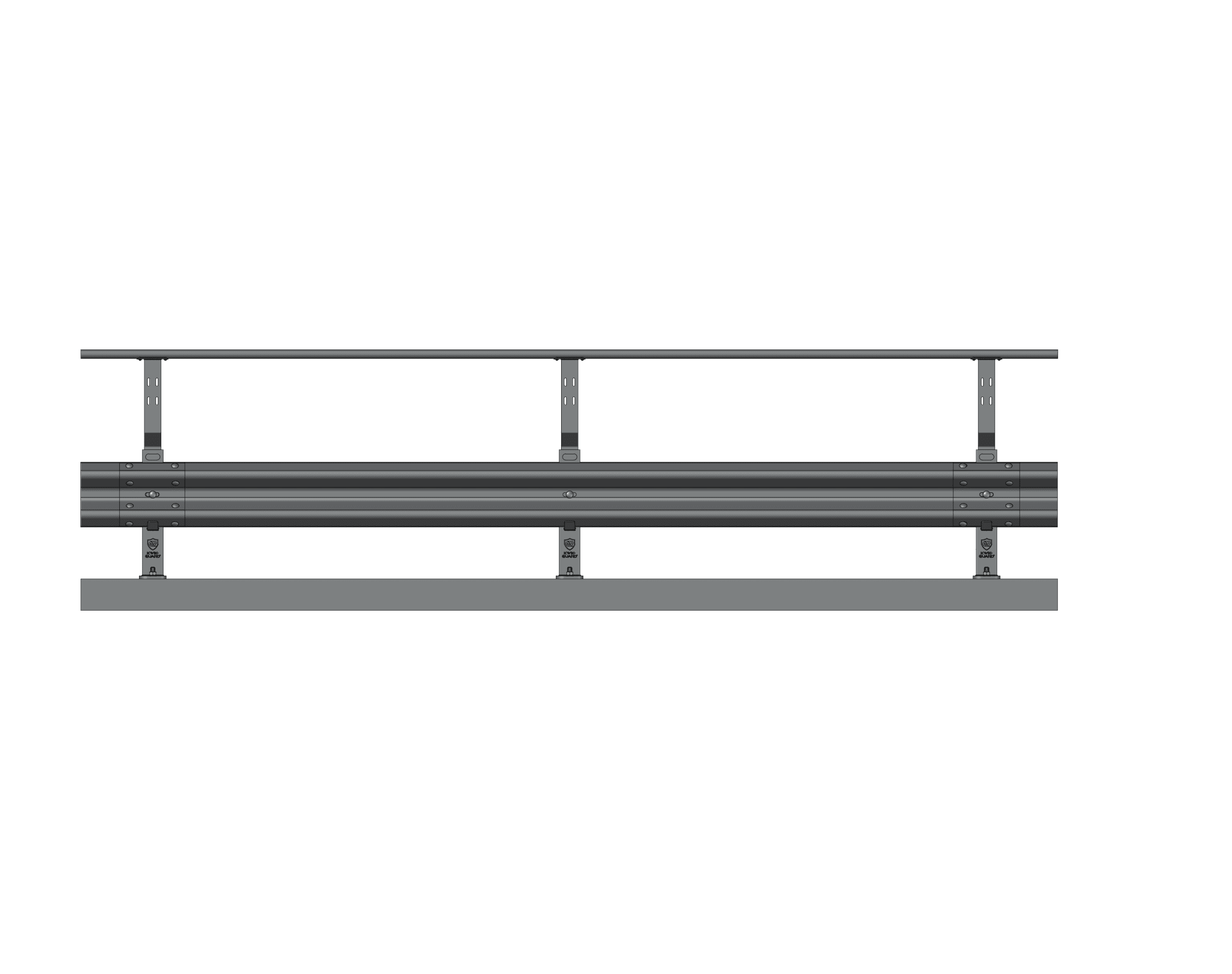

The system’s geometry has been optimised to provide comprehensive protection within a single sleek profile. By combining a 30kN-rated vehicle guardrail with a compliant 1100mm-high handrail, it eliminates the visual clutter of secondary fencing and simplifies the aesthetic of public and industrial spaces.
Engineered for precision, the design specifies TB20160G Iccons Thru-Bolt PRO anchors with a 114mm embedment depth. This technical specification ensures a secure, permanent bond to 150mm concrete slabs, providing a streamlined finish that conceals the immense 30kN impact resistance within a clean installation.
Utilising galvanised 32NB pipe, the Kwik-Guard system offers a professional, uniform appearance that complements modern commercial architecture. This high-quality finish is not only corrosion-resistant for roadside environments but also provides a low-maintenance, polished look for years to come.
The design strictly adheres to AS/NZS 1170.1 Clause 3.8 requirements while maintaining a user-friendly height for pedestrians. This ensures that safety does not come at the cost of accessibility, making it an ideal choice for educational institutions, airports, and public plazas.
The Kwik-Guard Class 3 system is the standard for high-traffic environments requiring absolute reliability. Independently crash-tested to surpass AS/NZS 1170.1 30kN impact loads, it provides dual-purpose protection for vehicles and pedestrians. Its edge-mount configuration on 150mm slabs makes it the go-to choice for space-constrained car parks and industrial zones where robust, compliant safety barriers are non-negotiable.
Secures perimeters and ramps with a 30kN-rated barrier designed for 150mm slabs. The system ensures high-level impact resistance and AS1170.1 compliance on every elevated deck.
Modernise existing facilities by retrofitting with high-performance TB20160G anchors. It provides a streamlined path to meeting current Australian Standards for vehicle and pedestrian safety.
Protects critical infrastructure and utility zones with a durable, galvanised 32NB pipe shield. The Class 3 system provides a physical 30kN barrier to prevent accidental vehicle incursions into high-value assets.
Enhances public safety with integrated 1100mm-high handrails that guide pedestrian flow. The crash-tested design protects structural columns while maintaining a clean, professional aesthetic.
Delivers long-term durability in high-turnover transport hubs with a 30kN impact-rated barrier. The 1100mm height ensures essential fall protection for commuters navigating multi-level facilities.
Shields high-density racking and internal walkways from heavy forklift traffic. The compact edge-mount profile preserves vital aisle width while ensuring maximum structural protection.
Kwik-Guard® Class 3 Single Height Edge Mount Guardrails are available from stock for rapid project delivery. Featuring a 1100mm high pedestrian handrail integrated with a 30kN impact-rated barrier system, the design provides compliant edge protection for multi-level car parks and commercial developments. Engineered to comply with AS/NZS 1170.1 Clause 3.8 and supplied with tested fixing solutions, the system offers architects and specifiers a practical, specification-ready guardrail solution with minimal lead times.
Receive project-specific guidance from our technical experts, including compliance advice, system configuration, and AS1170 crash-tested certification support.
