Certified to exceed AS/NZS 1170.1 standards, the Kwik-Guard Single Height Edge Mount Class 3 system is independently crash-tested to surpass 30kN impact loads. This robust barrier provides compliant protection for vehicles and pedestrians in busy car parks and warehouses. By utilising an edge-mount configuration, it maximises usable floor space on 150mm slabs while integrating a 1100mm-high handrail. It’s the preferred, high-performance choice for securing modern commercial infrastructure.

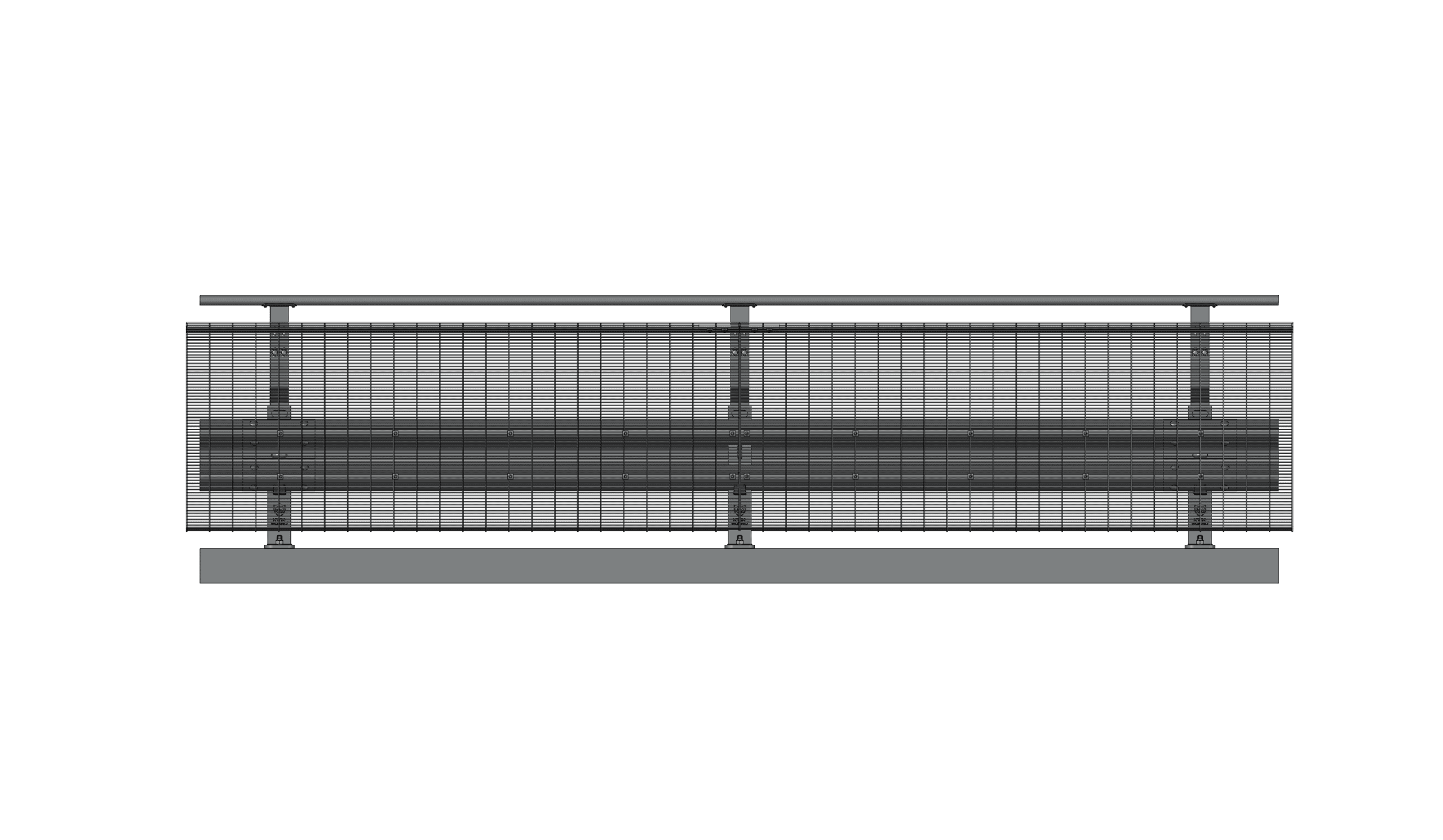

The Kwik-Guard Class 4 Edge Mount system is the preferred choice for multi-level carparks, warehouses, and multi-purpose developments across Australia. By fixing directly to the slab face with a 114mm embedment depth, this system maximises usable deck space while providing uncompromised security.
Independently crash-tested to surpass AS/NZS 1170.1 requirements with an impact resistance exceeding 30kN, it delivers robust vehicle containment and features a pedestrian handrail 1100mm high.
The integrated anti-climb galvanised mesh adds an essential layer of fall protection, making it ideal for high-traffic roadside or urban environments. From civil contractors to government buyers, the Class 4 system offers a durable, galvanised 32NB pipe construction that ensures long-term compliance and peace of mind.
Explore how Kwik-Guard can help streamline your next project’s safety requirements.
Exceeds Australian Safety Standards
Independently crash-tested to surpass AS/NZS 1170.1 requirements, this system withstands impact forces greater than 30kN. It provides a high-level safety buffer for vehicles and pedestrians in busy multi-storey carparks and industrial hubs.
Integrated Three-in-One Protection
Eliminate the need for multiple barriers. This streamlined system combines a crash-rated vehicle guardrail, a 1100mm high pedestrian handrail, and anti-climb mesh into a single, cohesive unit that simplifies project site management.
Superior Fall Prevention & Security
Equipped with high-quality anti-climb galvanised mesh, the Class 4 system prevents unauthorised access and accidental falls. This makes it an essential choice for elevated walkways and public-facing infrastructure projects.
Rapid, High-Strength Installation
Designed for efficiency, the system utilises TB20160G Iccons Thru-Bolt PRO anchors with a 114mm embedment depth. This ensures a fast, secure installation process that meets strict engineering sign-off requirements without project delays.
The system is geometrically engineered to distribute forces effectively, allowing it to surpass AS/NZS 1170.1 requirements. It handles 30kN impact loads with ease, providing a rigid, reliable shield for both vehicles and structural assets.
Designed with public safety in mind, the integrated galvanised anti-climb mesh provides a sleek, non-intrusive barrier. It eliminates footholds to prevent unauthorised access and accidental falls in elevated carparks and mixed-use precincts.
Safety shouldn’t be fragmented. Our design incorporates a 32NB galvanised pipe handrail at a compliant 1100mm height, ensuring that a single installation provides a continuous, ergonomic guide for foot traffic alongside vehicle zones.

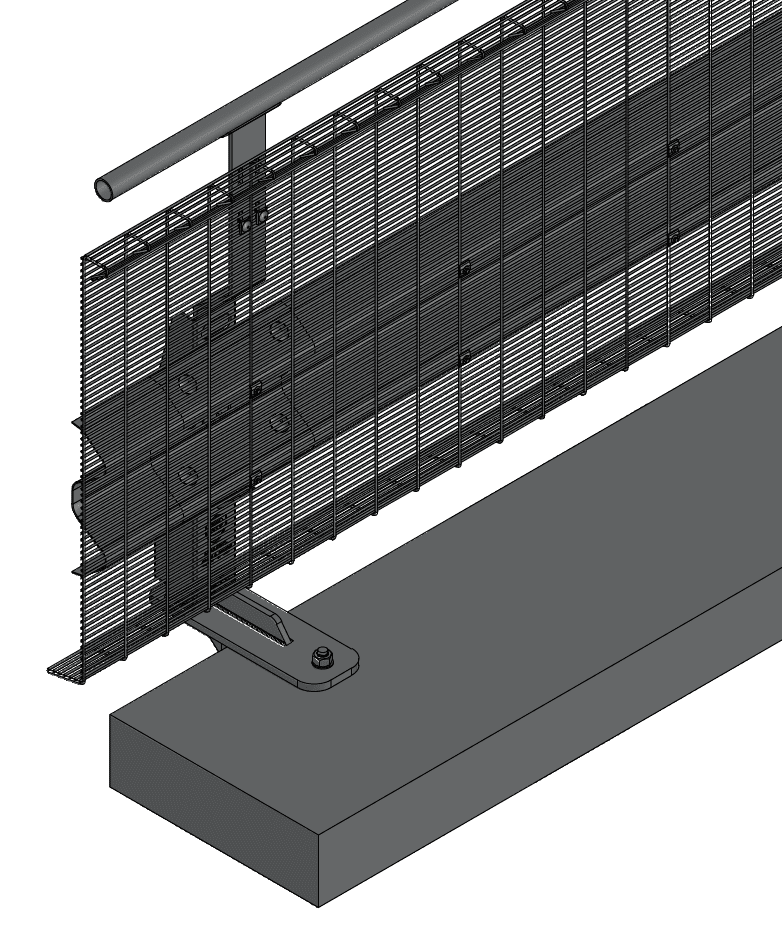

Reliability is built into the foundation. Using TB20160G Iccons Thru-Bolt PRO anchors with a 114mm embedment, the design ensures a permanent, high-strength bond to the concrete that resists vibration and high-impact stress over time.

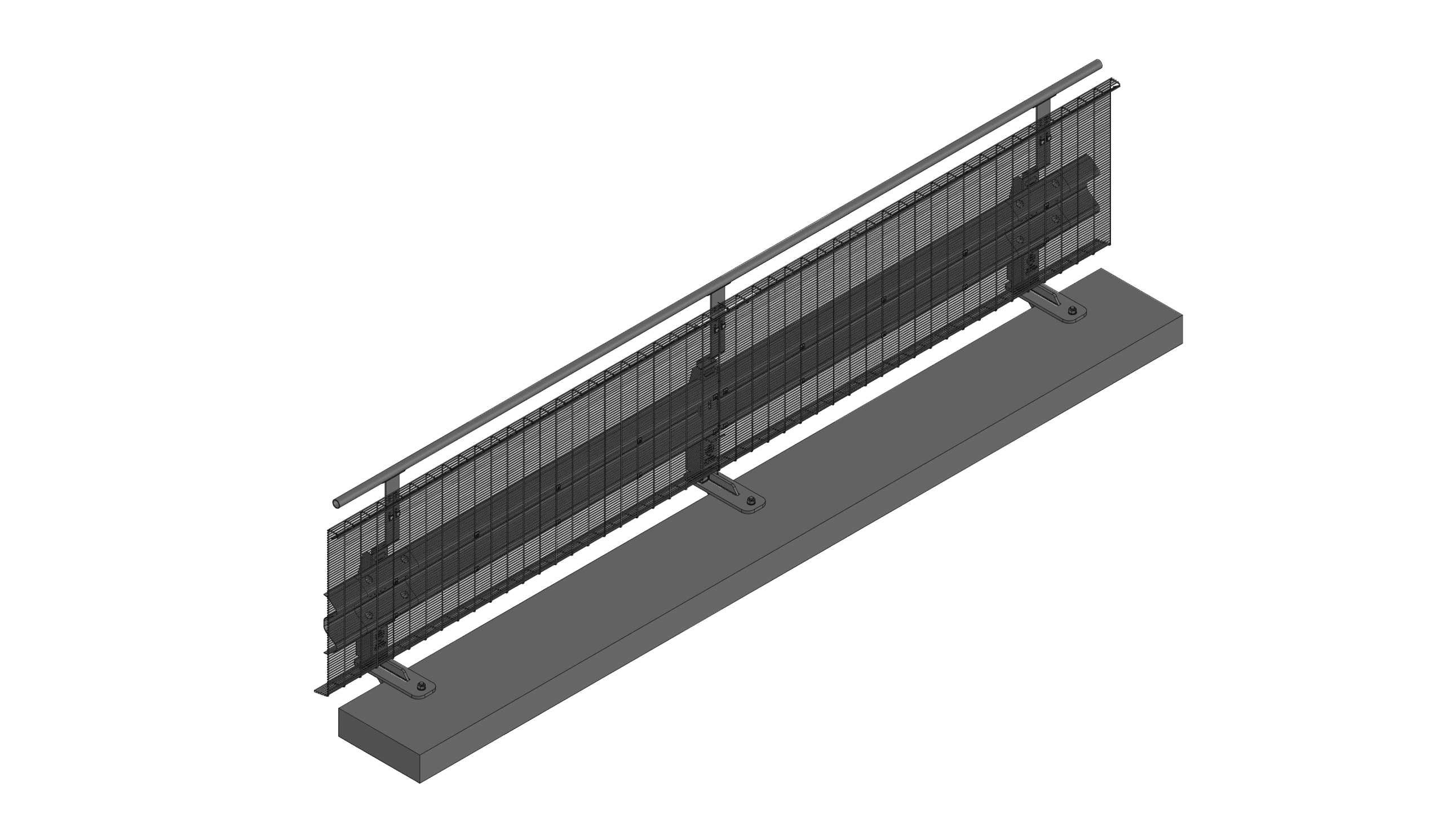

The edge-mount design offers a major advantage for high-density developments. By fixing to the vertical face of a 150mm minimum slab, it moves the barrier footprint outside the driving or walking lane, reclaiming critical space for parking or pedestrian flow.
The Kwik-Guard Class 4 system is purpose-built for environments requiring robust vehicle containment and pedestrian safety. Engineered to surpass AS/NZS 1170.1 30kN impact loads, its edge-mount design is perfect for projects where slab space is at a premium. From high-frequency commuter hubs to industrial loading zones, this system provides a durable, anti-climb solution that meets the strictest Australian safety standards.
Provides critical perimeter safety for elevated decks, exceeding 30kN impact force requirements to ensure vehicle containment and fall protection.
The edge-mount design fits 150mm slabs perfectly, allowing older facilities to achieve modern AS1170 compliance without losing parking bays.
Protects sensitive infrastructure and HV equipment with a 1100mm high barrier and integrated mesh to prevent unauthorised pedestrian access.
Combines 32NB galvanised handrails with anti-climb mesh to safely guide trolleys and families through busy, high-volume traffic zones.
A high-durability solution for transport hubs, offering crash-tested security and long-term weather resistance for public-facing infrastructure.
Protects racking and structural columns from forklift impacts while maintaining clear, safe walkways for staff via the integrated pedestrian rail.
Kwik-Guard® Class 4 Edge Mount Guardrail systems are available from stock for rapid delivery across Australia. Designed for multi-level car parks and elevated trafficable areas, the system combines 30 kN impact-rated vehicle protection with an integrated 1100mm high handrail and mesh fall protection. Stocked components are manufactured to strict quality standards and engineered to comply with AS/NZS 1170.1 Clause 3.8 requirements, providing a complete, specification-ready edge protection solution. Contact our team to discuss your project requirements, confirm stock availability and obtain current lead times.
Receive project-specific guidance from our technical experts, including compliance advice, system configuration, and AS1170 crash-tested certification support.
