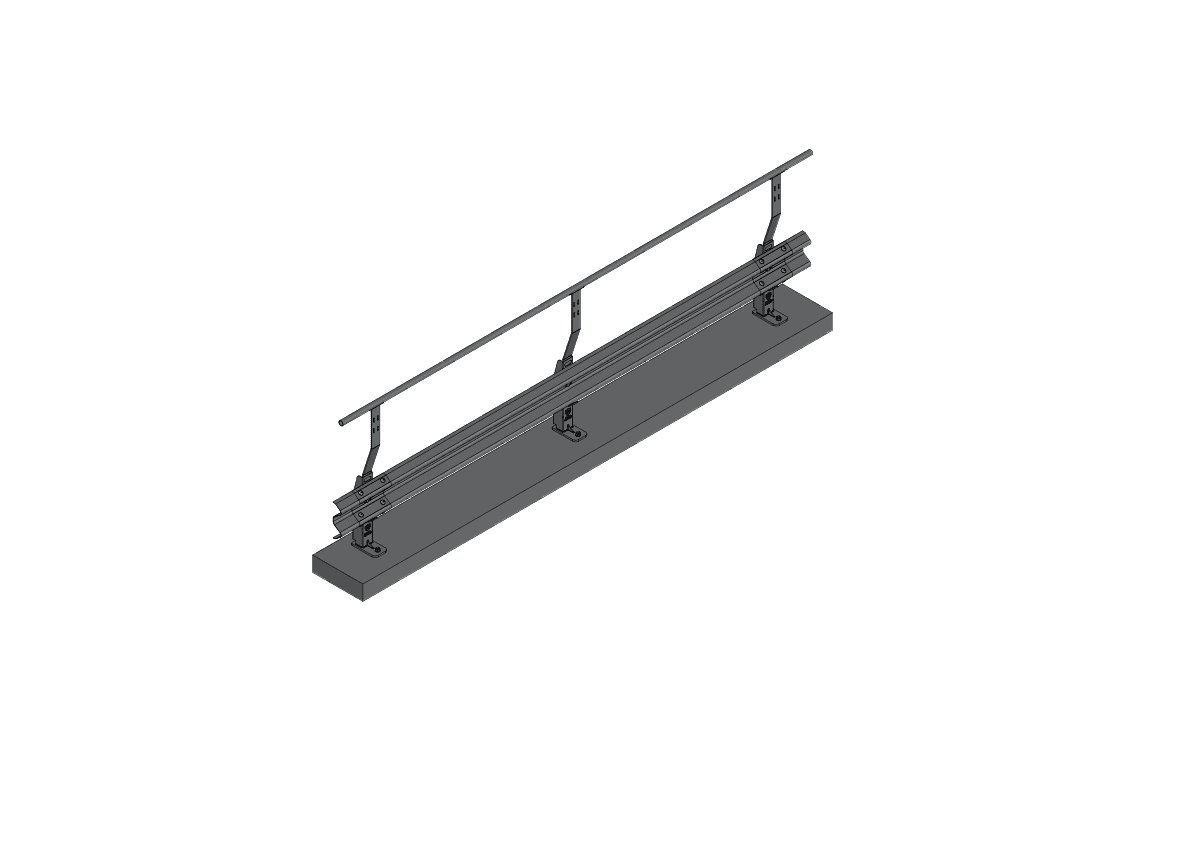

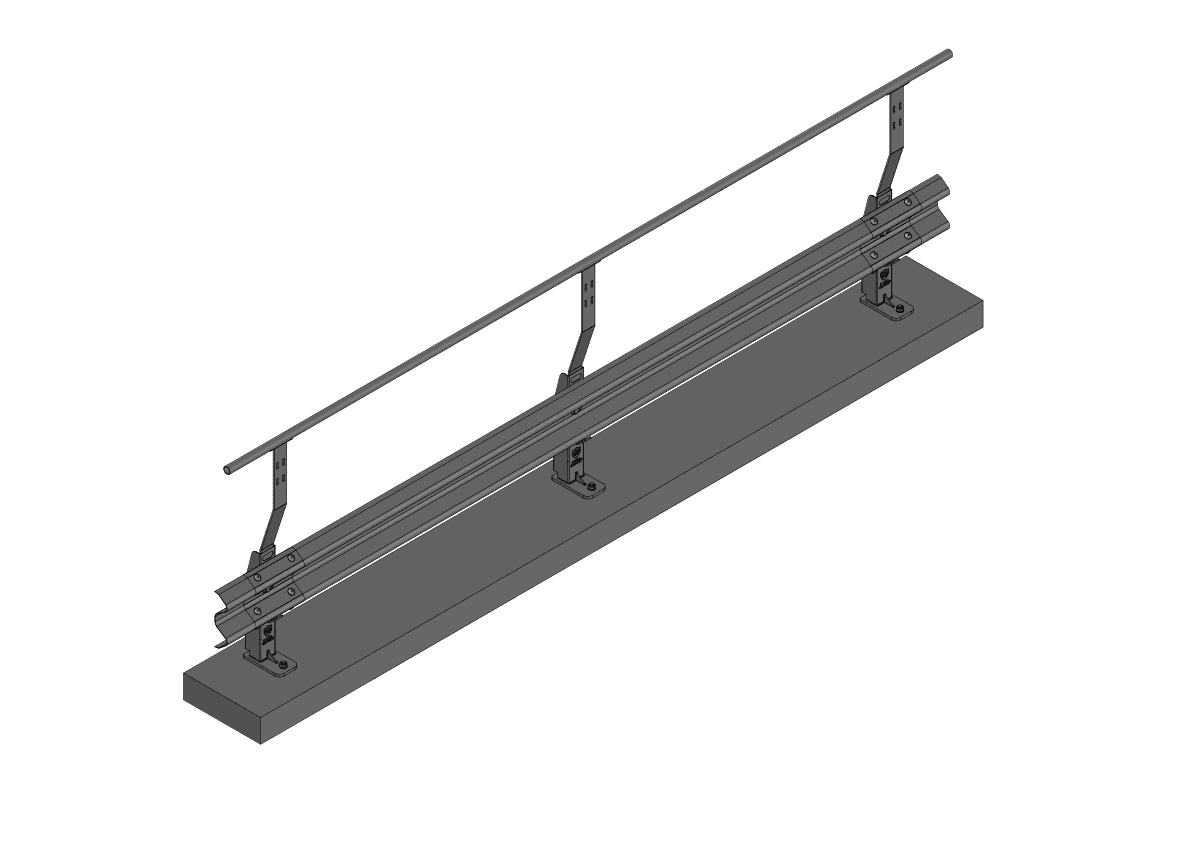

The Kwik-Guard® Class 5 Single Height Top Mount system delivers robust vehicle impact protection combined with a 1300mm high pedestrian handrail, making it ideal for elevated car parks and high-risk commercial environments. Crash tested to AS1170 Clause 3.8 and exceeding 30kN impact force, the system features a base-plated design for fast installation on 150mm concrete slabs using high-performance wedge anchors, providing long-term durability, compliance, and a clean architectural finish.
Designed for elevated car parks, commercial buildings, and warehouse infrastructure, the Kwik-Guard® Class 5 Single Height Top Mount system provides dependable protection where vehicles and pedestrians operate in close proximity.
The crash-tested barrier exceeds 30kN impact force in accordance with AS1170 Clause 3.8, while the integrated 1300mm handrail improves fall protection in elevated and high-risk areas.
A base-plated, top-mount configuration allows installation on concrete slabs from 150mm thick using proven wedge anchor fixings, reducing on-site complexity and downtime.
Galvanised steel components ensure durability in demanding environments, delivering long-term compliance without compromising appearance. Speak with our team to confirm suitability for your project.
Class 5 Crash-Tested Vehicle Protection
Tested to AS1170 Clause 3.8 and exceeding 30kN impact force, this system provides reliable vehicle restraint in high-risk areas such as elevated car parks and ramps. It helps reduce damage to structures while improving overall site safety.
Integrated 1300mm Pedestrian Handrail
The increased handrail height improves fall protection in elevated and public-facing environments. Ideal where higher pedestrian containment is required without the need for separate railing systems.
Top-Mount Design for Faster Installation
A base-plated, top-mount configuration allows installation onto concrete slabs 150mm thick. This simplifies site coordination, reduces installation time, and supports cleaner finishes.
Durable Galvanised Steel Construction
Manufactured from galvanised steel components, Kwik-Guard® is built to withstand demanding commercial and public environments. This ensures long service life with minimal maintenance over time.
The increased handrail height is designed to improve pedestrian safety in elevated and high-risk areas while maintaining a clean, unobtrusive visual line. Ideal for car parks and public structures where fall protection requirements are higher.
The top-mount design allows the system to be fixed directly to concrete slabs 150mm thick, supporting straightforward detailing at slab edges and ramps without complex cast-in components.
Designed to exceed 30kN impact force under AS1170 Clause 3.8, the system balances structural strength with controlled deformation, helping protect both vehicles and surrounding structures during impact events.
Galvanised steel components and a refined profile deliver a neat, professional appearance suitable for visible commercial and public-facing environments, reducing the need for additional finishing treatments.
The system’s design suits a wide range of layouts, including elevated car parks, pedestrian interfaces, and ramp edges, making it easier to apply consistently across complex commercial and infrastructure projects.
The Kwik-Guard® Class 5 Single Height Top Mount system is designed to integrate seamlessly into elevated and high-risk environments. Exceeding 30kN impact force in accordance with AS1170 Clause 3.8, the system combines Class 5 vehicle restraint with a 1300mm pedestrian handrail. Its top-mounted, base-plated design allows efficient installation on concrete slabs from 150mm thick using engineered wedge anchors, supporting consistent detailing, reliable performance, and long-term compliance across commercial and public infrastructure projects.
Provides Class 5 vehicle impact protection exceeding 30kN, while the 1300mm handrail improves pedestrian safety on elevated decks. Designed for top-mount installation on 150mm concrete slabs in accordance with AS1170.
Ideal for retrofit projects where slab penetration is required without structural redesign. The base-plated system uses wedge anchor fixings to deliver compliant Class 5 performance with minimal disruption.
Protects critical equipment and pedestrian access routes from vehicle impact using a crash-tested Class 5 system. The elevated handrail supports safe movement in confined or high-risk service zones.
Designed for high-traffic public environments, combining Class 5 impact resistance with a clean galvanised finish. Supports pedestrian safety compliance in busy, visible car park areas.
Delivers durable, AS1170-compliant vehicle restraint for daily high-volume use. The 1300mm handrail enhances safety in elevated and open-deck commuter facilities.
Provides heavy-duty vehicle impact protection in industrial settings, reducing damage to racking and infrastructure. Engineered to withstand high-impact forces while maintaining clear pedestrian separation.
Kwik-Guard® Class 5 Single Height Top Mount Guardrails are stocked in standard configurations and ready for immediate dispatch across Australia. Combining impact-rated vehicle protection with a 1300mm high pedestrian handrail and integrated mesh fall protection, the system is ideal for multi-level car parks and elevated trafficable areas. Manufactured for compliance with AS/NZS 1170.1 Clause 3.8, Kwik-Guard® Class 5 delivers a durable, specification-ready guardrail solution with fast lead times and efficient installation.
Receive project-specific guidance from our technical experts, including compliance advice, system configuration, and AS1170 crash-tested certification support.
