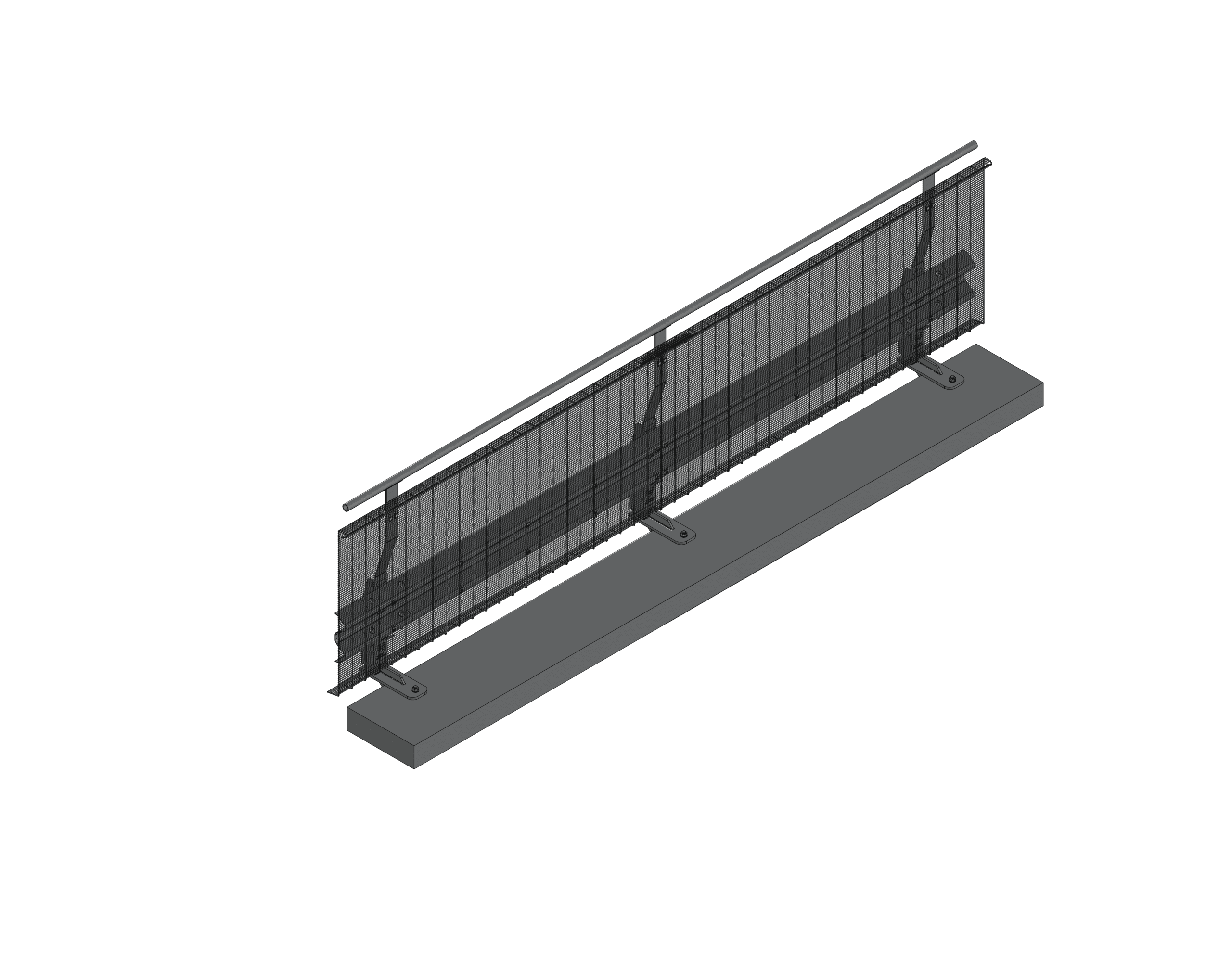

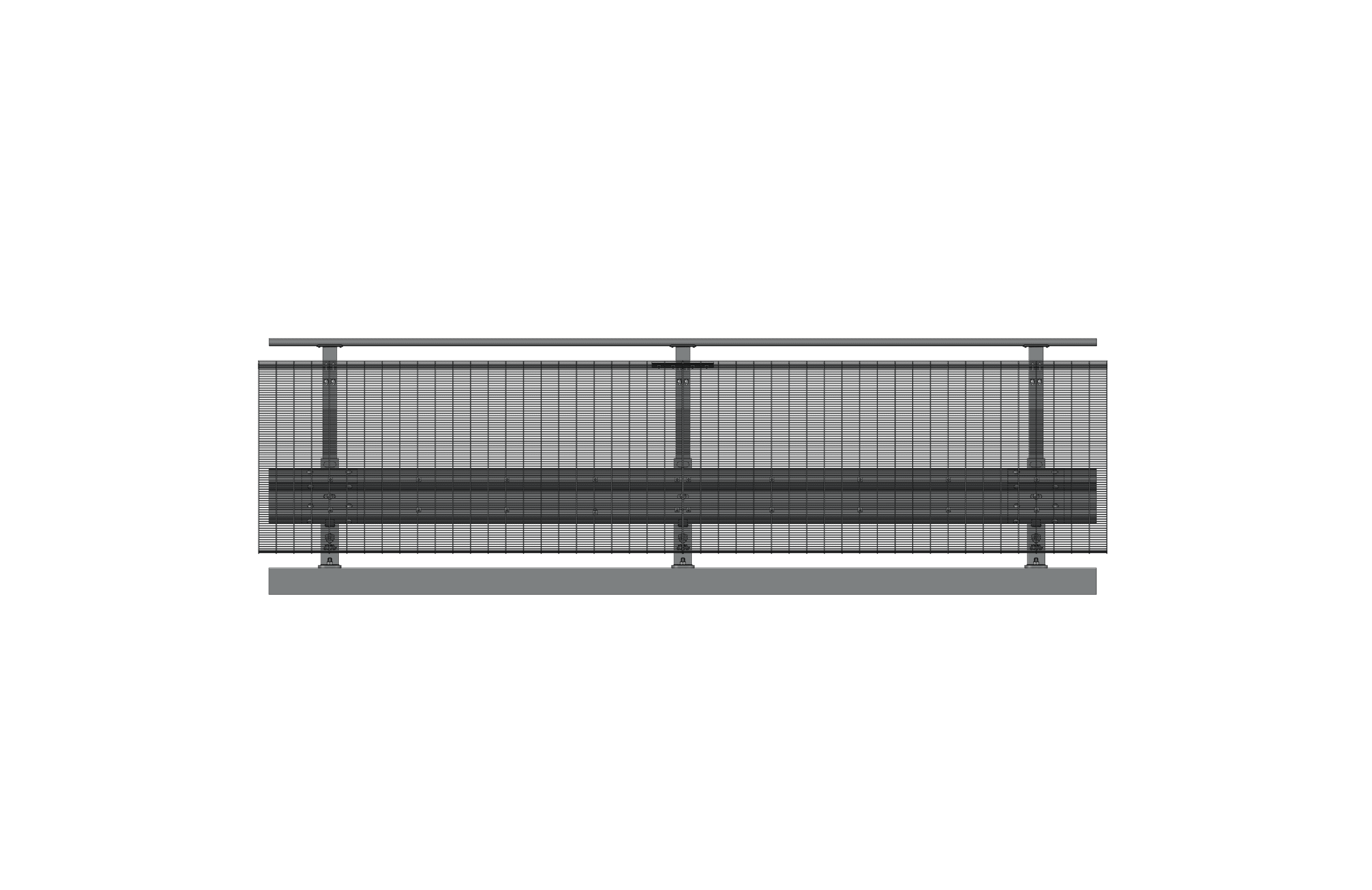

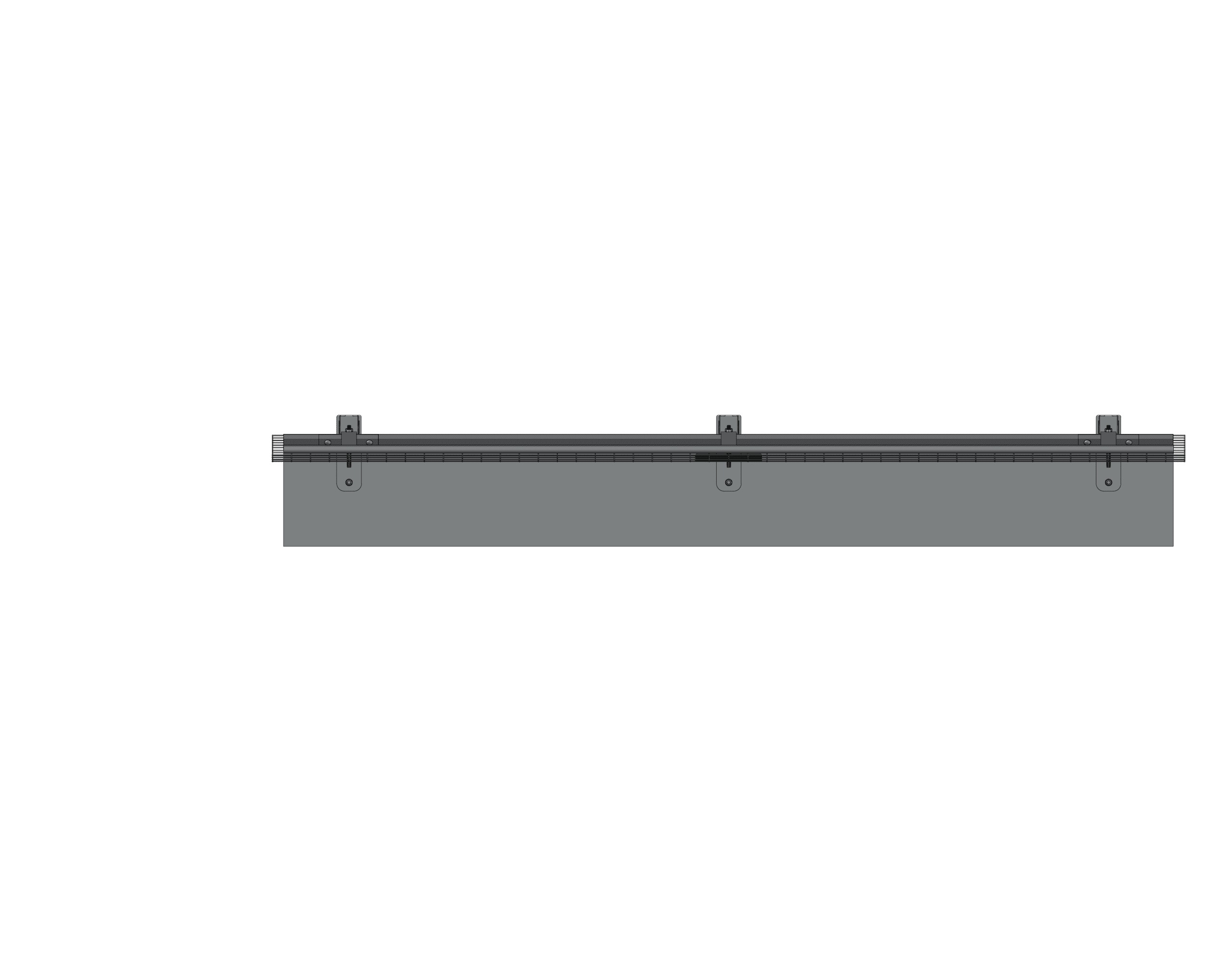

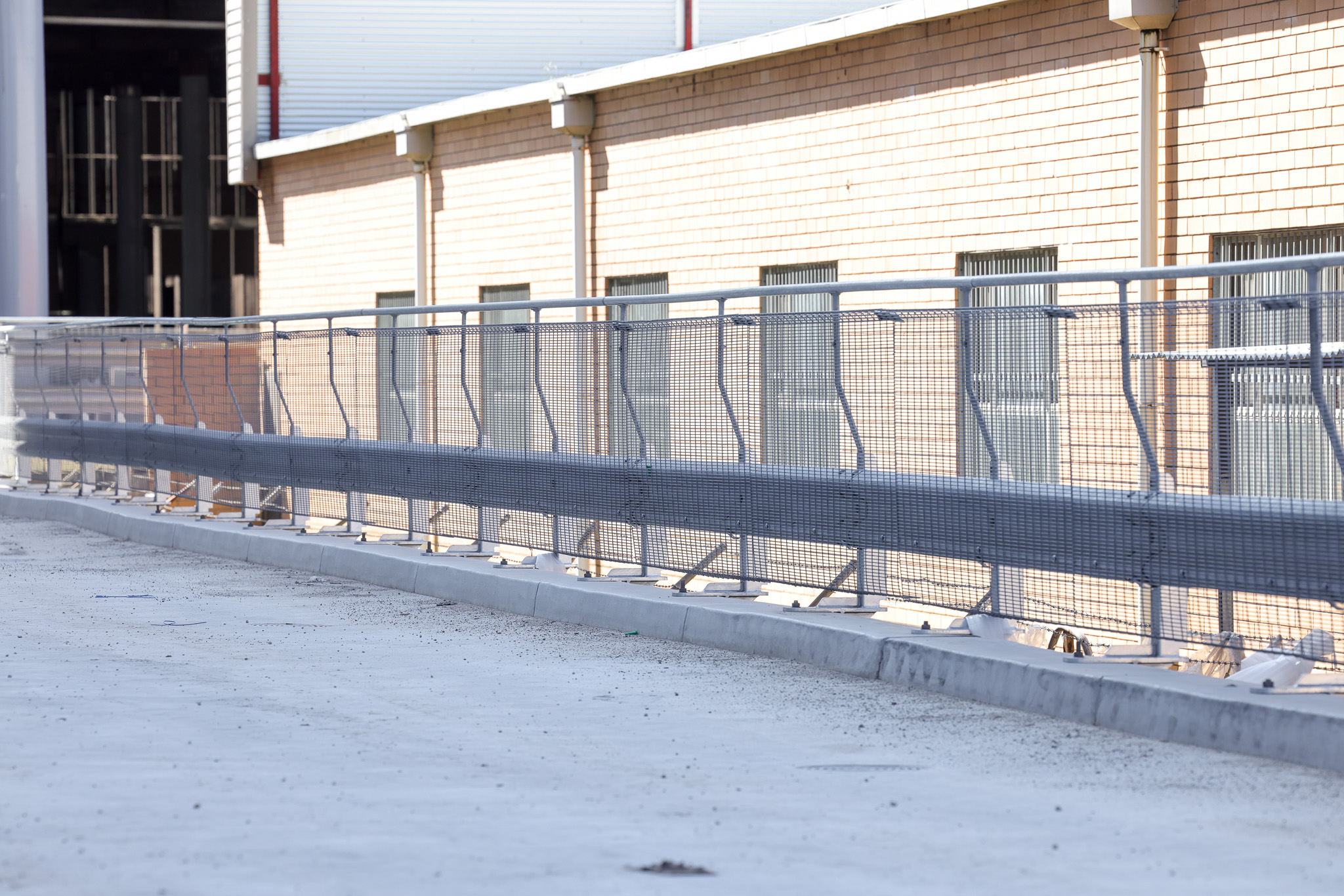

Purpose-built for high-risk environments, the Kwik-Guard Class 6 Edge Mount system provides heavy-duty vehicle containment without sacrificing floor space. Independently crash-tested to surpass AS/NZS 1170.1 30kN impact loads, this 1300mm high barrier features integrated anti-climb mesh for superior pedestrian safety on slab edges. The edge-mount design fixes directly to a minimum 150mm slab face, maximising usable deck area while ensuring rigid, compliant protection in multi-storey car parks.
Kwik-Guard’s Edge Mount Class 6 system is ideal for multi-storey car parks and industrial slabs where space and safety are equally critical. Independently crash-tested to surpass AS/NZS 1170.1 30kN impact loads, this system provides unwavering vehicle containment.
By fixing directly to the slab face that requires only a 150mm minimum thickness, it preserves deck space that traditional top-mount barriers occupy.
Beyond structural strength, the 1300mm high galvanised frame includes integrated anti-climb mesh, creating a secure environment for pedestrians in high-traffic zones.
Whether you are securing an exposed warehouse edge or a busy urban car park, the Class 6 system ensures your project meets rigorous Australian standards with a durable, low-maintenance finish.
View the full technical data sheet or get in touch for a project-specific quote.
Surpasses Australian Safety Standards
Independently crash-tested to exceed AS/NZS 1170.1 30kN impact loads, this system provides elite vehicle containment. It offers peace of mind for engineers and developers, ensuring robust protection for both pedestrians and assets in high-traffic car parks.
Integrated Anti-Climb Pedestrian Safety
Standing at 1300 mm, the barrier features a 32NB galvanised handrail and integrated anti-climb mesh. This dual-purpose design prevents falls from height and deters climbing, making it ideal for elevated slabs and multi-storey public infrastructure.
Heavy-Duty Galvanised Durability
Built to withstand harsh Australian conditions, the entire system, including the pipework and mesh, is fully galvanised. This ensures long-term corrosion resistance in exposed roadside environments, warehouses, and coastal car parks, significantly lowering lifecycle maintenance costs.
Diverse High-Risk Application
From industrial warehouses to busy urban shopping centres, the Class 6 rating makes this guardrail suitable for the most demanding environments. It provides a seamless safety barrier that manages heavy vehicle impacts while guiding foot traffic through clear, protected zones.
Engineered to withstand more than 30kN of impact force, the design prioritises structural resilience without the bulk of traditional concrete barriers. This independent crash-testing ensures the system provides a slim yet heavy-duty containment solution for warehouses and car parks.
Safety is woven into the design with a high-visibility, anti-climb galvanised mesh. At a system height of 1300 mm, it creates a continuous protective envelope that prevents falls from height while maintaining clear sightlines for drivers and pedestrians in busy urban zones.

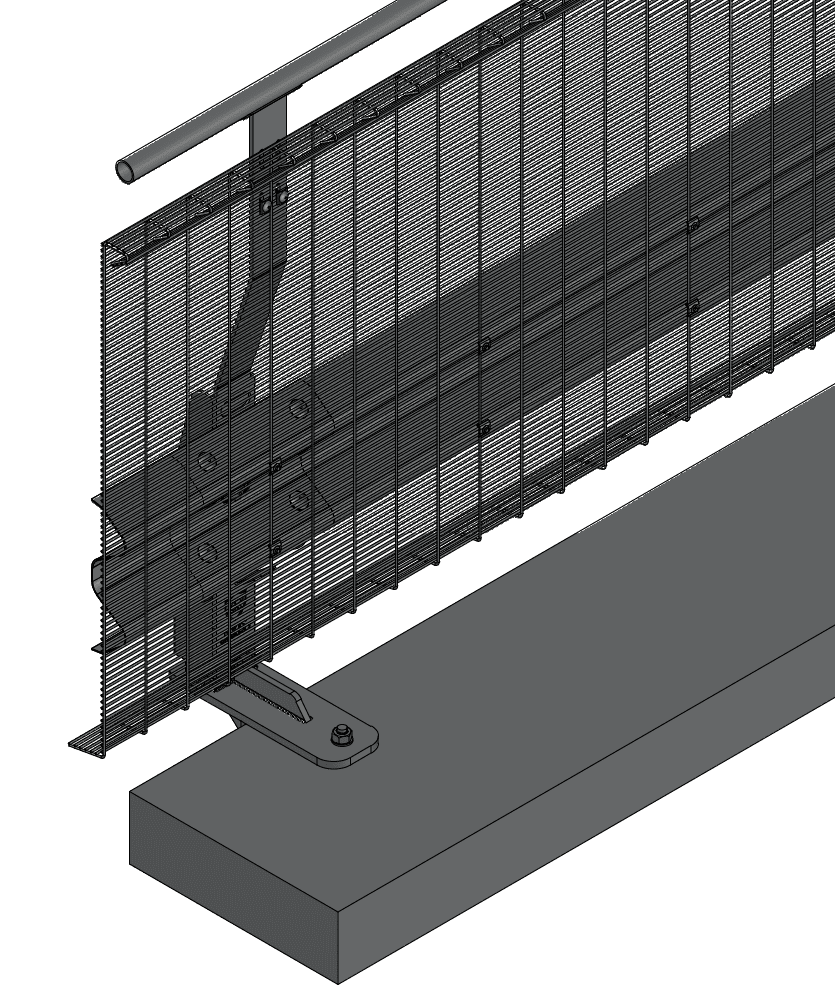

Every element, from the 32NB galvanised pipe handrail to the TB20160G Iccons Thru-Bolt PRO anchors, is chosen for its industrial-grade durability. The 114 mm embedment depth ensures a rigid, permanent bond that resists vibration and high-impact stress over decades of use.
The design is calibrated for modern construction standards, requiring a minimum slab thickness of only 150 mm. This allows for seamless integration into a wide variety of commercial and industrial builds without the need for additional structural thickening or costly slab modifications.
The Kwik-Guard design allows for a clean, consistent aesthetic across varied project site conditions. Whether wrapping around exposed slab edges or lining internal pedestrian walkways, the system provides a uniform, professional finish that complements modern architectural styles.
The Kwik-Guard Class 6 system is engineered for versatility, providing a slim-profile, high-strength barrier where space is a premium. Independently crash-tested to surpass AS/NZS 1170.1 30kN impact loads, it delivers reliable vehicle containment and pedestrian safety. Whether protecting exposed slab edges or guiding traffic in busy hubs, this system ensures long-term compliance and durability for any modern facility.
Maximises usable deck space with an edge-mount design that provides 30kN vehicle containment and 1300 mm high anti-climb pedestrian protection on every level.
Secures steep ramps and elevated loading bays with a space-saving edge-mount profile that ensures heavy vehicles remain safely within designated traffic lanes.
Protects sensitive utility hubs with AS/NZS-compliant barriers that absorb high-impact forces, while the anti-climb mesh secures high-voltage enclosures. Moreover, this 1300 mm system provides a robust deterrent, keeping service areas accessible to staff yet safe from vehicle damage.
Ensures a professional, galvanised finish that manages high-volume traffic flow and protects shoppers with a robust, anti-climb fall-protection barrier.
Prevents expensive rack damage and inventory loss by installing a high-strength barrier that absorbs impact forces exceeding 30kN in tight logistical spaces.
Creates clear, protected pedestrian walkways alongside heavy machinery and forklift paths, capable of withstanding significant industrial impacts without failing.
Guard-R Group maintains extensive stock of Kwik-Guard® Class 6 Edge Mount Guardrail components, ensuring rapid supply for projects across Australia. Designed for multi-level car parks and elevated trafficable areas, the system combines a single-height W-Beam guardrail with a 1300mm high pedestrian handrail and integrated mesh fall protection to deliver a complete edge protection solution. Every component is manufactured to strict quality standards and engineered to meet or exceed AS/NZS 1170.1 impact loading requirements. Whether you’re specifying a small refurbishment or a large-scale hospital, commercial or public infrastructure project, our stocked inventory and streamlined supply chain help minimise lead times and keep construction programs on track.
Receive project-specific guidance from our technical experts, including compliance advice, system configuration, and AS1170 crash-tested certification support.
