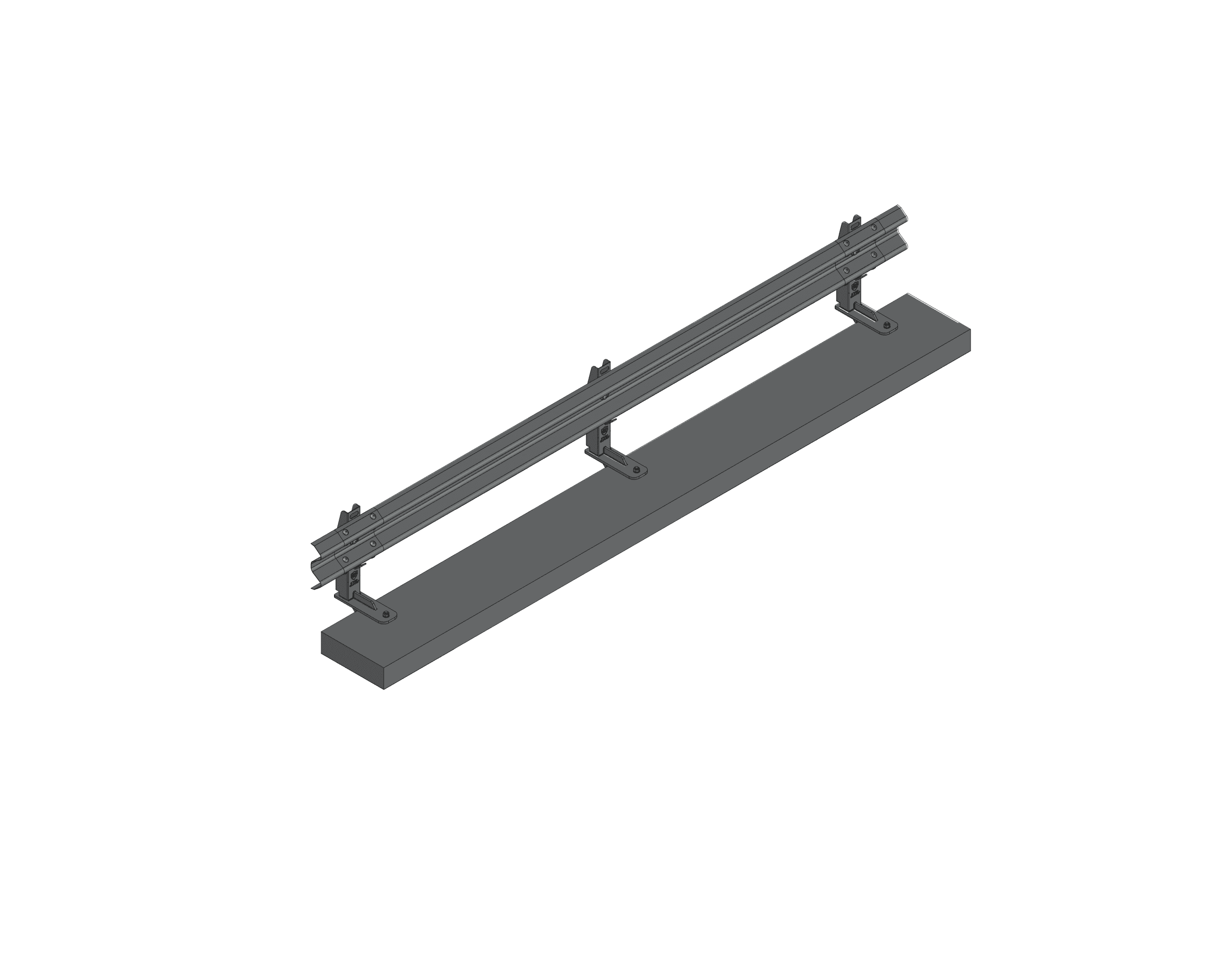

Engineered for safety and spatial efficiency, the Kwik-Guard Class 1 Edge Mount system provides a load-rated barrier for Australian carparks and warehouses. Independently crash-tested to exceed AS/NZS 1170.1 30kN impact loads, this 620mm-high guardrail offers robust containment with minimal deflection. The edge-mount design fits slabs as thin as 150mm, maximising useable floor area. Utilising Iccons Thru-Bolt PRO anchors, it ensures a secure, low-profile finish for any infrastructure project.
The Kwik-Guard Single Height system is the preferred choice for Australian developers and civil contractors who require both safety and floor-plate efficiency. Specifically engineered for high-traffic environments, this Class 1 barrier is independently crash-tested to surpass AS/NZS 1170.1 requirements, comfortably withstanding impact forces exceeding 30kN.
The system’s standout feature is its edge-mount design, which installs directly into the slab edge to maximise useable vehicle clearance, ideal for tight commercial carparks or busy warehouse loading zones.
Standing at a 620 mm system height, it provides a low-profile aesthetic while maintaining rigid containment with minimal deflection. Designed for rapid deployment, it requires a minimum slab thickness of just 150 mm and utilises Iccons Thru-Bolt PRO anchors with a 114 mm embedment depth for a rock-solid, permanent fix.
Whether you are guiding urban foot traffic or protecting critical structural columns, Kwik-Guard® delivers a durable, compliant finish that stands up to the rigours of modern infrastructure. Reach out to discuss your project specifications or request a detailed quote.
AS/NZS Compliant Impact Resistance
Independently crash-tested to surpass AS/NZS 1170.1 Clause 3.8, this system can easily handle impact forces exceeding 30kN. It provides reliable vehicle containment and pedestrian protection, giving project managers total peace of mind in high-traffic commercial environments.
Space-Saving Edge-Mount Design
By mounting directly to the slab edge, Kwik-Guard maximises usable floor area and vehicle clearance. This low-profile, 620 mm high barrier is the ideal solution for narrow ramps and tight carpark layouts where every centimetre of driveable space is critical.
High-Strength Industrial Fixing
Security is built-in with the use of TB20160G Iccons Thru-Bolt PRO stud wedge anchors. With a 114 mm embedment depth and a precision 20 mm drill diameter, these fixings ensure the guardrail remains rock-solid under stress, preventing barrier displacement during low-speed impacts.
Rapid, Low-Impact Installation
Designed with civil contractors in mind, the system is engineered for a fast, straightforward fit-out. The 125 mm drill depth and streamlined edge-mount geometry allow for quick deployment across large-scale projects, significantly reducing onsite labour time and associated costs.
The structural design prioritises stiffness, ensuring that the guardrail absorbs and redirects energy with minimal inward movement. This is critical in real-world scenarios where barriers are positioned close to glass facades, structural columns, or narrow pedestrian walkways.
The standout feature of the Kwik-Guard design is its ability to mount directly to the slab edge. This innovative footprint eliminates the bulky setbacks required by traditional bolt-down barriers, giving architects and developers more useable vehicle clearance and wider drive aisles in tight commercial layouts.

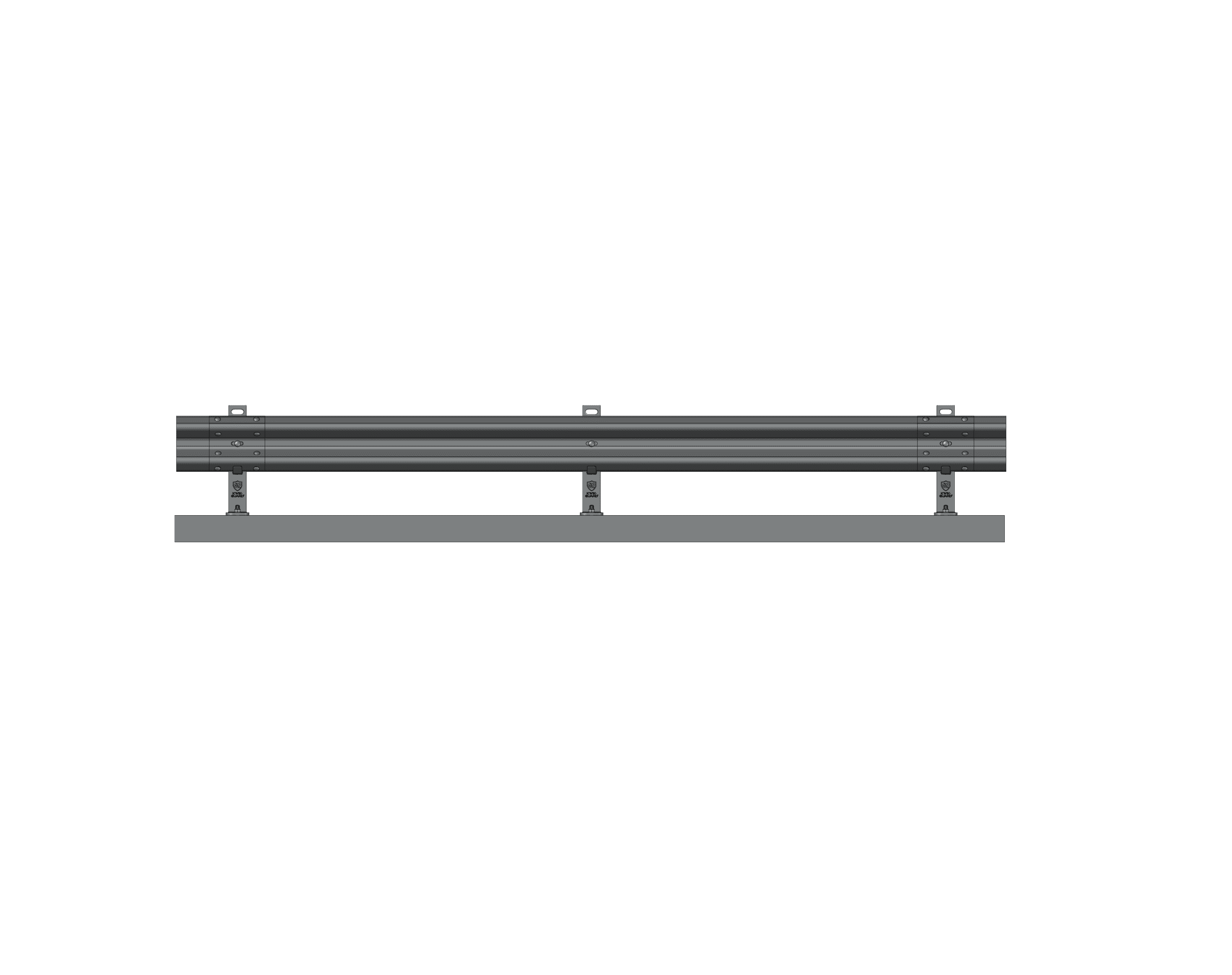

Standing at a streamlined 620 mm system height, this guardrail offers a clean, unobtrusive aesthetic that doesn’t compromise on safety. The design provides a modern, professional finish for high-end commercial carparks while maintaining the rigid structural integrity needed to withstand heavy impacts.
Engineered to be versatile, the Kwik-Guard system is designed for installation on concrete slabs with a minimum thickness of just 150 mm. This allows for seamless integration into a variety of modern building designs, from multi-storey retail hubs to industrial mezzanine levels.

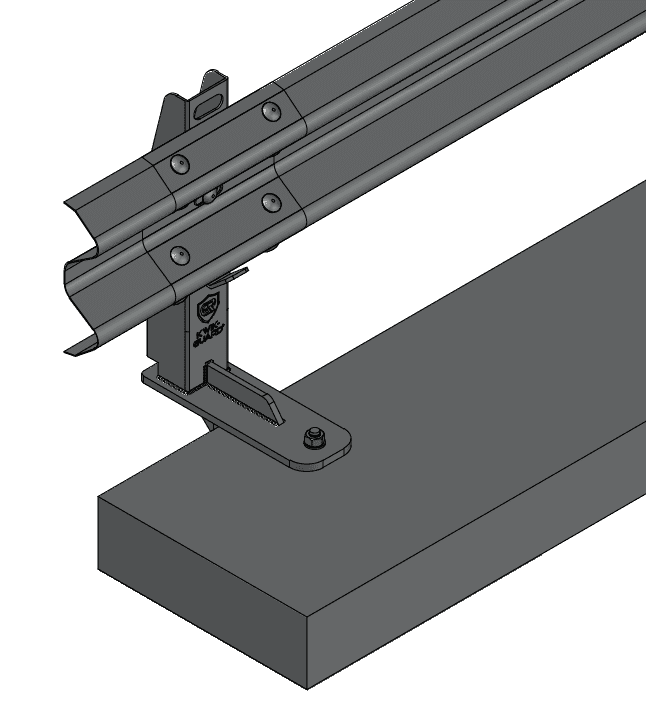

The design incorporates Iccons Thru-Bolt PRO technology with a precise 114 mm embedment depth. This ensures that the transfer of force during a 30kN impact is distributed safely through the concrete, preventing the barrier from shearing or loosening over time in high-vibration environments.
The Kwik-Guard design prioritises both safety and site yield. Standing at 620 mm, its edge-mount geometry secures directly to slabs as thin as 150 mm, reclaiming valuable floor space in tight layouts. Independently tested to exceed AS/NZS 1170.1 30kN impact loads, the system uses Iccons Thru-Bolt PRO anchors for rigid containment. It’s a low-profile, high-strength solution engineered for seamless integration.
Maximises driveable area on narrow ramps with an edge-mount design that exceeds AS1170.1 30kN requirements. The 620 mm height ensures clear sightlines while providing high-impact containment for elevated slabs.
Helps modernise aging infrastructure by leveraging the TB20160G Iccons anchor system that requires only a 150 mm minimum slab. The streamlined edge-mount design offers the fastest way to bring existing facilities up to modern Class 1 safety standards.
Protects sensitive electrical substations and HVAC plant equipment from accidental vehicle impact. The rigid steel profile ensures minimal deflection, safeguarding critical infrastructure in confined service zones.
Ensures high-volume retail traffic remains safe with AS-compliant barriers that protect both pedestrians and storefronts. Moreover, the low-profile finish offers a professional aesthetic that complements modern commercial architecture.
It is optimised and crash-tested to withstand the rigours of 24/7 public transport hubs. The 114 mm fixing embedment ensures the system remains rock-solid under constant, high-frequency use.
Shields expensive racking and inventory from forklift impacts with a barrier tested to surpass 30kN forces. The edge-mount configuration keeps aisles clear for machinery while preventing costly structural damage.
Designed to simplify specification and procurement, Kwik-Guard® Class 1 Edge Mount Guardrails are available from stock for rapid project delivery. The system has been independently crash-tested to exceed AS/NZS 1170.1 Clause 3.8 30 kN impact load requirements and is supplied complete with TB20160G Iccons Thru-Bolt PRO anchors. Backed by detailed technical documentation, CAD details and specification support, Kwik-Guard® Class 1 provides architects, designers and engineers with a compliant, readily available edge protection solution for car park and elevated trafficable areas.
Receive project-specific guidance from our technical experts, including compliance advice, system configuration, and AS1170 crash-tested certification support.
