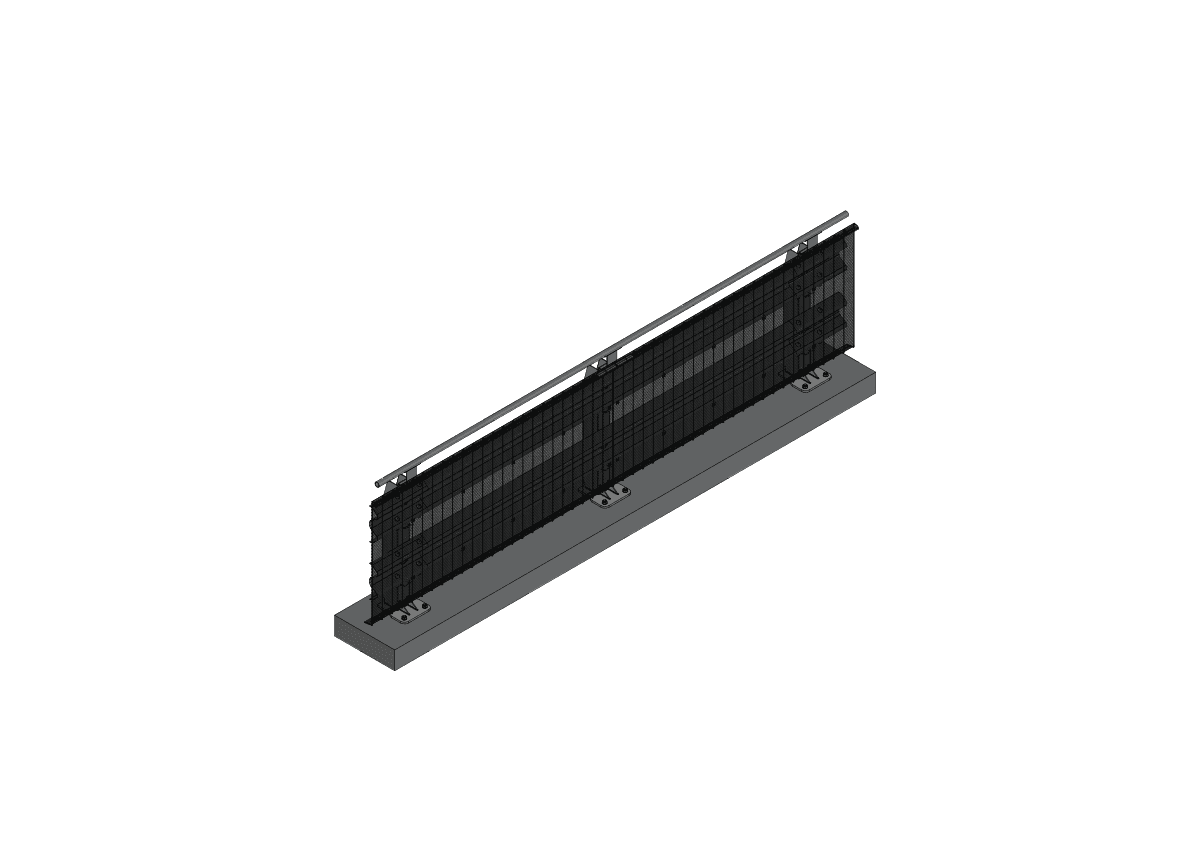

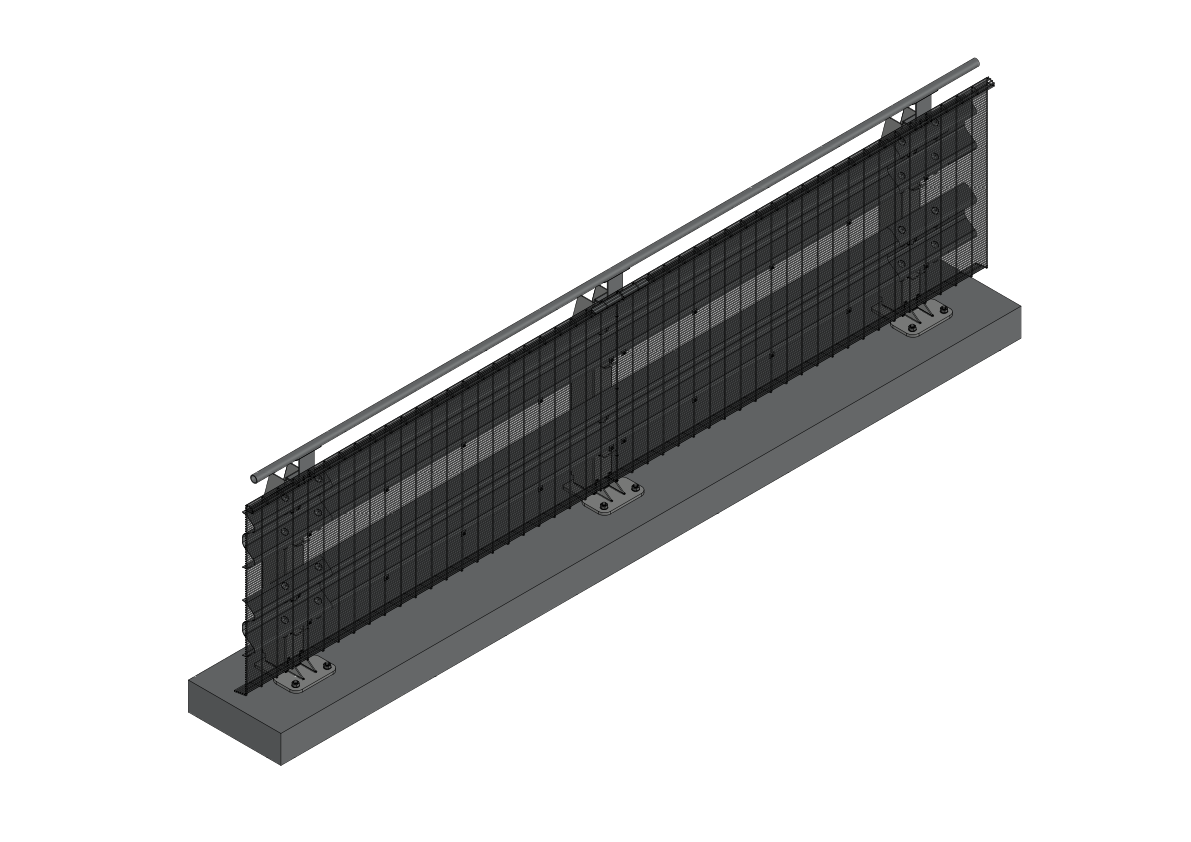

Engineered for high-risk zones, the Kwik-Guard Double Height Class 5 system delivers superior dual-layer protection. Independently crash-tested to exceed AS1170 standards, it withstands 40kN impacts, securing loading docks and heavy-vehicle carparks. The 1300mm system features a 32NB galvanized handrail and anti-climb mesh for reliable fall prevention. Designed for efficiency, the top-mount base plates install quickly on 200mm slabs, ensuring robust safety with maximum site visibility.
The Kwik-Guard Double Height Class 5 system is the benchmark for high-risk environments like loading docks, warehouses, and heavy-vehicle carparks.
While traditional barriers often force a compromise between vehicle security and pedestrian safety, this system provides both. Independently crash-tested to withstand 40kN impacts, it meets AS1170 Clause 3.8 standards, ensuring it can stop a vehicle while its 1300mm height and integrated anti-climb mesh prevent accidental falls.
For project managers and contractors, the top-mount design is a major advantage. It installs quickly onto a minimum 200mm slab using high-performance TB20160G Thru-Bolts, saving time without sacrificing structural integrity. The galvanized 32NB pipe construction ensures long-term durability in tough Australian conditions, while the increased height significantly improves site visibility for drivers and staff alike.
Explore our full technical range or reach out to our team to discuss your project’s compliance requirements.
Certified High-Impact Resistance
Independently crash-tested to withstand 40kN impacts, this system is engineered for the toughest environments. It provides a robust physical shield for loading docks and warehouses, ensuring heavy vehicles are safely contained upon contact
Dual-Layer Pedestrian Protection
Standing at a system height of 1300mm, this barrier features integrated anti-climb galvanized mesh. This combination prevents accidental falls from elevated slabs while discouraging unsafe pedestrian crossing in high-traffic vehicle zones.
Industrial-Grade Durability
Built to survive the harsh Australian climate, the system utilises Galvanized 32NB Pipe for the handrail and heavy-duty mesh. This ensures long-term corrosion resistance and structural integrity, even in exposed coastal or industrial environments.
Rapid Top-Mount Installation
Designed for efficiency, the base-plated top-mount design allows for quick installation on a minimum 200mm slab. Utilising TB20160G Thru-Bolt PRO anchors, contractors can quickly secure the system, minimising site downtime and labour costs.

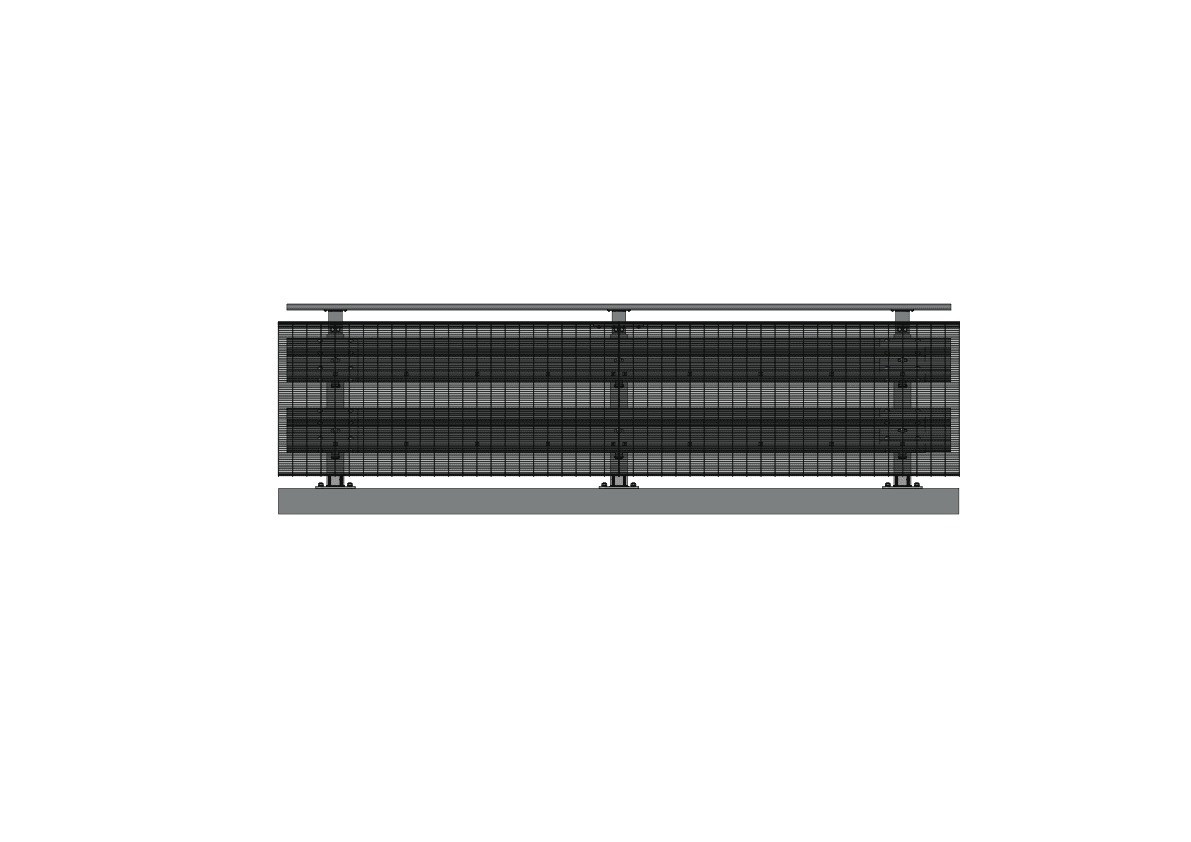

The Kwik-Guard design seamlessly merges a high-impact vehicle barrier with a 1300mm pedestrian handrail. The unified structure eliminates the need for separate fencing systems, providing a clean, cohesive look for loading docks and elevated car parks.
Engineered for sites where floor space is at a premium, the base-plated top-mount design secures directly to the slab surface. This low-profile footprint allows for maximum usable area on truck hardstands while maintaining a minimum 200mm slab requirement.
Utilizing 32NB Galvanized Pipe, the system is designed for modularity and extreme environmental resilience. This heavy-duty finish ensures the barrier maintains its structural integrity and aesthetic professional finish in high-moisture or industrial roadside environments.
The strategic 1m guardrail height is a deliberate design choice to optimise line-of-sight for operators. By reducing “blind spots” in warehouses and carparks, the design ensures that drivers can see both the barrier and any pedestrians behind the anti-climb mesh.
The system is designed to withstand 40kN impact forces by distributing energy through its specialised anchoring system. Using TB20160G Thru-Bolt PRO anchors, the design ensures the force of a collision is safely absorbed by the concrete substrate.
The Kwik-Guard Class 5 system is engineered for high-risk zones where heavy vehicles and pedestrians intersect. Independently crash-tested to withstand 40kN impacts, it exceeds AS1170 standards while its 1300mm height prevents accidental falls. With a 1m guardrail design, it maximises operator visibility, making it the essential choice for securing loading docks, multi-story carparks, and busy industrial hardstands.
Stops heavy vehicle overruns with a 40kN impact-rated barrier designed to protect dock levelers and staff. The 1300mm anti-climb mesh ensures safe pedestrian thoroughfares in high-frequency loading zones.
The 1m guardrail height significantly improves line-of-sight for truck drivers, reducing low-speed collisions. Galvanized 32NB steel construction provides long-term durability against the constant wear of heavy-industrial traffic.
Creates a permanent safety envelope around internal picking zones and forklift lanes with AS1170-compliant barriers. Its top-mount design allows for rapid installation on 200mm slabs without disrupting facility operations.
Balances public safety and asset protection in high-traffic retail zones with anti-climb mesh and crash-tested steel. The galvanized finish integrates seamlessly into modern commercial aesthetics.
Designed to manage high-volume peak traffic, this robust barrier simultaneously guides pedestrians and contains vehicle mishaps. The 1300mm system height exceeds standard safety requirements, providing superior protection for busy public transport infrastructure.
Secures elevated slabs with fall protection and vehicle containment in one unified system. The TB20160G Thru-Bolt anchoring ensures maximum pull-out resistance during high-impact structural events.
Our national stock of Kwik-Guard Class 5 systems ensures your 40kN impact protection is ready for immediate delivery. Supplied with 32NB galvanized steel and TB20160G Thru-Bolt PRO anchors, these AS1170-compliant systems arrive site-ready to keep your project on schedule. From loading docks to major infrastructure, we provide reliable, site-ready stock across Australia.
Receive project-specific guidance from our technical experts, including compliance advice, system configuration, and AS1170 crash-tested certification support.
