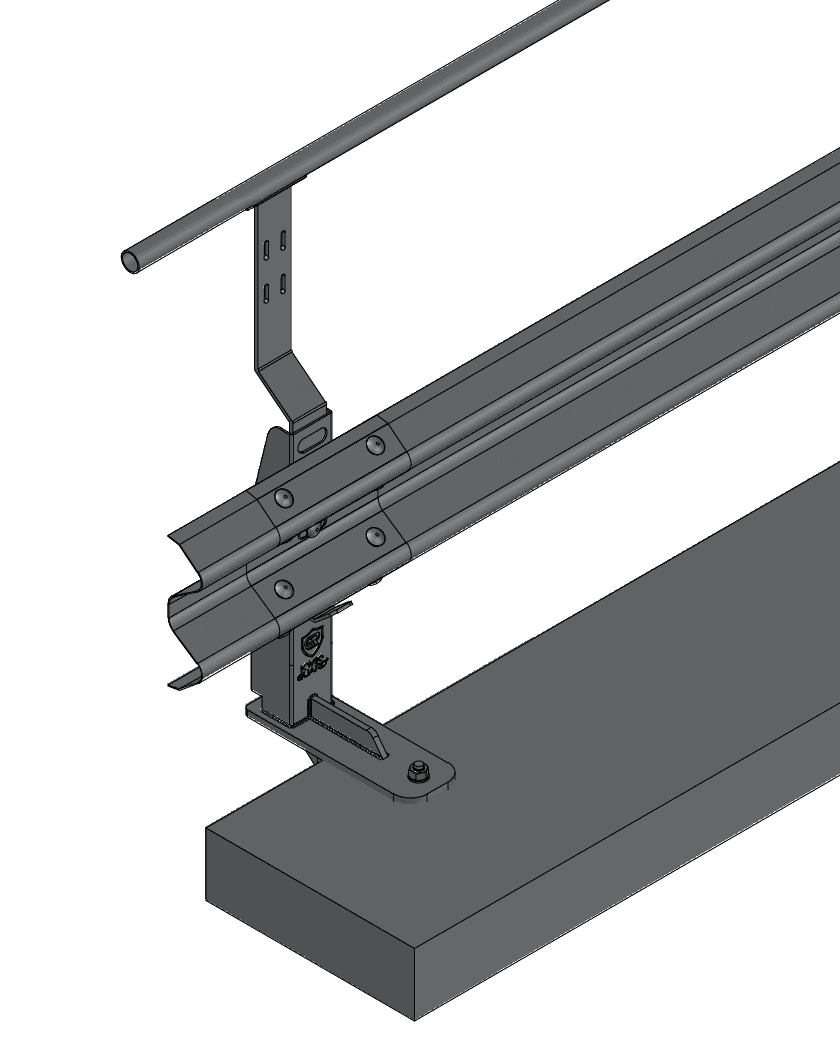

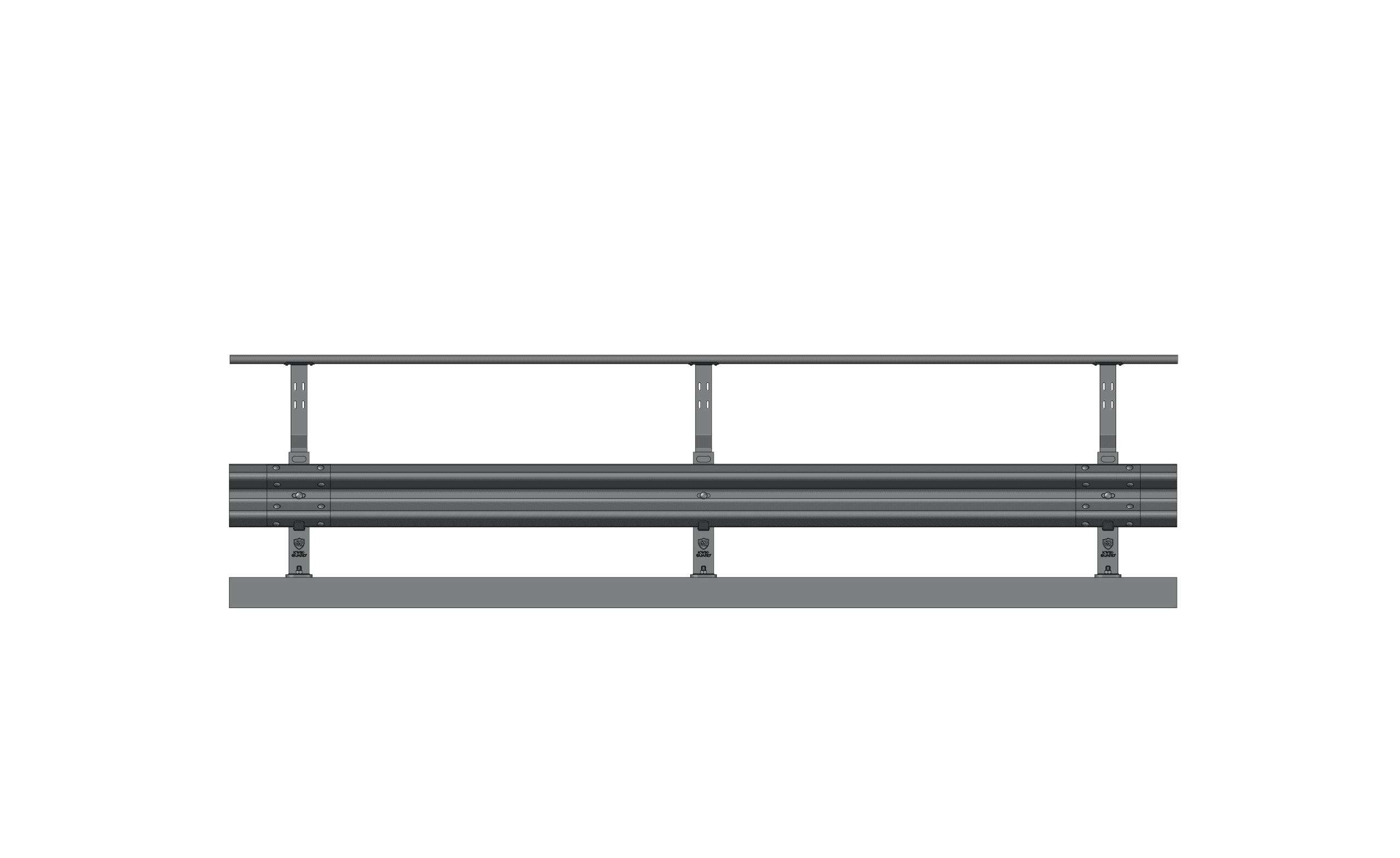

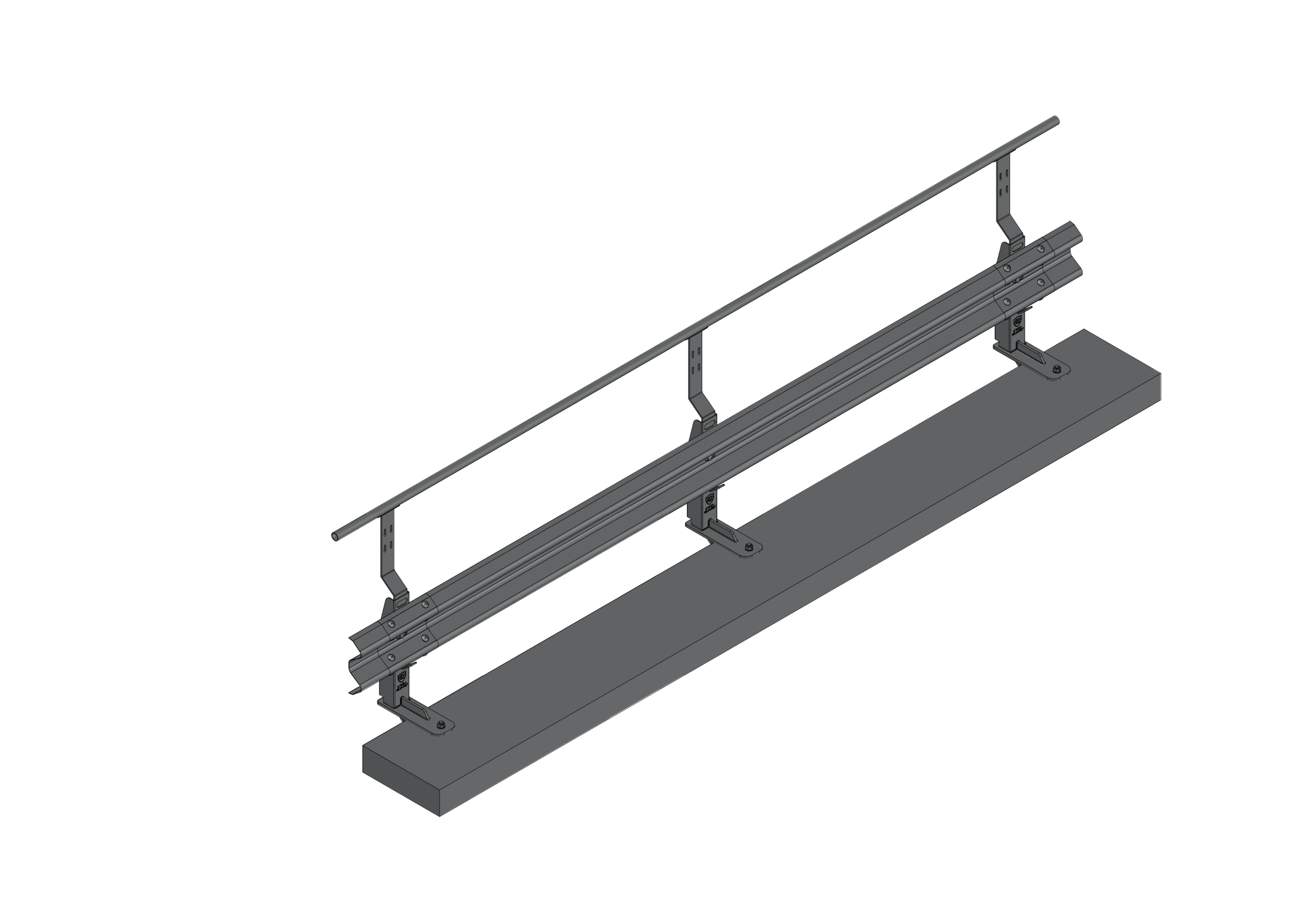

Engineered for high-traffic environments, the Kwik-Guard Single Height Edge Mount Class 2 system provides robust protection for carparks and warehouses. Independently crash-tested to surpass AS/NZS 1170.1 30kN impact loads, it secures to the slab face to maximise floor space without compromising safety. It features an integrated 1100mm handrail and is fixed via Iccons Thru-Bolt PRO anchors into a minimum 150mm slab, offering a durable, space-saving solution for modern infrastructure.
In high-traffic commercial car parks and industrial warehouse environments, ensuring both asset protection and pedestrian safety remains a critical priority. The Kwik-Guard Single Height Edge Mount Class 2 offers a high-performance solution, independently crash-tested to surpass AS/NZS 1170.1 30kN impact loads.
By fixing directly to the face of a minimum 150mm concrete slab, this system preserves valuable floor area, which is an essential feature for modern urban developments and logistics hubs.
Featuring an integrated 1100mm galvanised handrail, it provides seamless guidance for foot traffic while delivering unyielding vehicle containment. Built for durability and full compliance, it is the trusted choice for those who refuse to compromise on site safety.
Speak with our experts to learn how the Class 2 system fits your next project.
Certified High-Impact Security
Surpassing AS/NZS 1170.1 with an independently tested 30kN impact resistance, this system provides unyielding protection. It is the preferred barrier for high-traffic car parks and industrial warehouses where vehicle containment and asset protection are non-negotiable.
Integrated Dual-Purpose Safety
Eliminates the need for secondary installations with the built-in 1100mm-high handrail. This integrated system provides compliant pedestrian guidance in shared zones, ensuring foot traffic is safely separated from vehicle movements without the clutter of multiple barrier types.
Space-Maximising Edge Mount Design
By fixing directly to the face of a minimum 150mm concrete slab, the edge-mount configuration preserves valuable internal floor area. This allows developers to maximise net lettable area, create wider pedestrian paths, or increase the number of available parking bays.
Durable, Low-Maintenance Finish
Constructed with heavy-duty galvanised 32NB pipe, the Kwik-Guard is built to withstand harsh Australian conditions. The corrosion-resistant finish ensures long-term performance and professional aesthetics in both indoor logistics hubs and exposed outdoor infrastructure.
Despite its slim aesthetic, this guardrail is independently crash-tested to surpass AS/NZS 1170.1 30kN impact loads. It offers the heavy-duty protection required for busy warehouses and car parks while maintaining a modern, unobtrusive silhouette that doesn’t feel industrial or bulky.
Featuring a compliant 1100mm-high handrail, the system eliminates the visual clutter of installing separate barriers and fences. Its streamlined profile provides a clean, professional aesthetic for commercial projects while ensuring pedestrians remain safely separated from vehicle paths.
Designed for absolute stability, the system utilises TB20160G Iccons Thru-Bolt PRO anchors with a 114mm embedment depth. This precise engineering ensures a rock-solid connection to concrete slabs as thin as 150mm, providing reliable protection in high-risk zones.
The Kwik-Guard system is designed for adaptability across diverse architectural layouts. Whether navigating complex car park ramps or long warehouse perimeters, its modular nature ensures a consistent, compliant safety barrier that complements your site’s specific design requirements.
Constructed with high-grade galvanised 32NB pipe, the Kwik-Guard is designed to withstand the rigours of both indoor industrial use and exposed outdoor environments. The finish resists corrosion and wear, maintaining its professional appearance and structural health over an extended service life.
The Kwik-Guard Class 2 design prioritises site efficiency by fixing directly to the slab face. This edge-mount configuration preserves valuable floor area in tight carparks while delivering unyielding safety. Independently tested to surpass AS/NZS 1170.1 30kN impact loads, the system features an integrated 1100mm handrail. It provides a streamlined, compliant barrier that protects both pedestrians and assets without encroaching on traffic lanes.
Maximises driveable area on narrow ramps with an edge-mount design that exceeds AS1170.1 30kN requirements. The 620 mm height ensures clear sightlines while providing high-impact containment for elevated slabs.
Retrofit existing facilities with ease using Iccons Thru-Bolt PRO anchors, requiring only a 150mm minimum slab thickness. This system instantly brings ageing infrastructure up to modern Australian safety standards.
Protects sensitive electrical substations and plant equipment from low-speed vehicle impacts. The heavy-duty galvanised 32NB pipe construction provides a durable, non-combustible barrier for high-risk service zones.
Guides shoppers safely with compliant pedestrian fencing heights integrated into a crash-tested vehicle barrier. Moreover, its professional finish maintains a high-quality aesthetic for premium retail environments.
Offers a high-tenacity solution designed for high-turnover public transport hubs. The robust 125mm drill-depth installation ensures long-term stability in busy roadside and rail-adjacent parking zones.
Prevents expensive forklift damage to racking systems with impact protection exceeding Clause 3.8 standards. The slim profile ensures maximum clearance for logistics machinery while shielding personnel and inventory.
Specified for compliance and stocked for rapid delivery, the Kwik-Guard® Class 2 Edge Mount Guardrail system provides a practical solution for multi-level car parks requiring vehicle restraint and pedestrian protection. Featuring a 1100mm high handrail and engineered in accordance with AS/NZS 1170.1 Clause 3.8, the system is supported by stocked components and approved fixing systems for efficient project delivery. Speak with our technical team for specification assistance, stock availability and project-specific advice.
Receive project-specific guidance from our technical experts, including compliance advice, system configuration, and AS1170 crash-tested certification support.
