Kwik-Guard® Double Height Class 2 Guardrail: AS-Compliant, 40kN Impact-Rated Truck Containment System with Integrated Handrail

Built for high-traffic warehouse and truck environments, the Kwik-Guard Double Height Class 2 system delivers proven vehicle containment and safer pedestrian access in one integrated solution. Crash-tested to AS1170 Clause 3.8 and rated to exceed 40kN impact force, it features a 1300mm-high galvanised 32NB handrail for added protection. The base-plated, top-mount design installs securely into 200mm slabs with 114mm embedment using TB20160G wedge anchors for long-term durability

Built for Real-World Safety: Proven, Impact-Rated Barriers for Warehouse Sites

The Kwik-Guard Double Height Class 2 system is designed for real-world environments where trucks and pedestrians operate side by side; from large-scale distribution centres and warehouses to logistics hubs, freight terminals, manufacturing facilities and loading dock areas.

Crash-tested to AS1170 Clause 3.8 and rated to exceed 40kN impact force, it provides dependable vehicle containment while the 1300mm-high galvanised 32NB handrail improves pedestrian safety.

Its top-mount, base-plated design installs into 200mm concrete slabs with 114mm embedment using TB20160G wedge anchors, delivering secure, long-term performance.

If you’re planning a project that requires compliant, combined barrier and handrail protection, speak with our team to discuss your specifications.

Features

Certified Strength. Proven Protection.

Integrated 1300mm Pedestrian Handrail

The double-height design incorporates a 1300mm-high galvanised 32NB handrail, improving pedestrian safety along walkways, ramps and shared vehicle zones. One system delivers both containment and guided foot traffic protection.

40kN Impact-Rated Vehicle Barrier System

Crash-tested to AS1170 Clause 3.8 and rated to exceed 40kN impact force, this system helps contain vehicles in carparks, warehouses and loading zones. It’s built to reduce damage, disruption and risk in high-traffic areas.

Heavy-Duty Mechanical Anchoring

Installed using TB20160G Iccons Thru-Bolt PRO wedge anchors (20mm drill diameter, 125mm drill depth), providing reliable mechanical fixing suited to demanding site conditions.

Engineered for 200mm Concrete Slabs

Designed for slabs with a minimum 200mm thickness, with 114mm embedment depth for secure anchoring. This ensures strong structural performance without complex footing

DESIGN: Engineered to Protect Pedestrians, Vehicles & Property

Double-Height Integrated Configuration

The 1300mm-high system combines a Class 2 vehicle barrier with a galvanised 32NB pedestrian handrail in one structure. This integrated design reduces the need for separate installations while maintaining clear separation between vehicles and foot traffic.

Top-Mount, Base-Plated Construction

The base-plated design mounts directly onto concrete slabs, creating a clean, practical solution for carparks and elevated decks. It simplifies detailing while maintaining structural integrity under impact.

Mechanical Anchor Fixing System

Installed using TB20160G Iccons Thru-Bolt PRO wedge anchors (20mm drill diameter, 125mm drill depth), the system provides reliable mechanical load transfer without complex cast-in components.

Crash-Tested Structural Strength

All steel components are galvanised to withstand indoor and outdoor exposure, ensuring long-term durability and low maintenance even in high-use environments.

Optimised for 200mm Concrete Slabs

Designed for slabs with a minimum 200mm thickness, the system achieves secure fixing with 114mm embedment depth. This makes it suitable for most commercial carpark and warehouse slab designs.

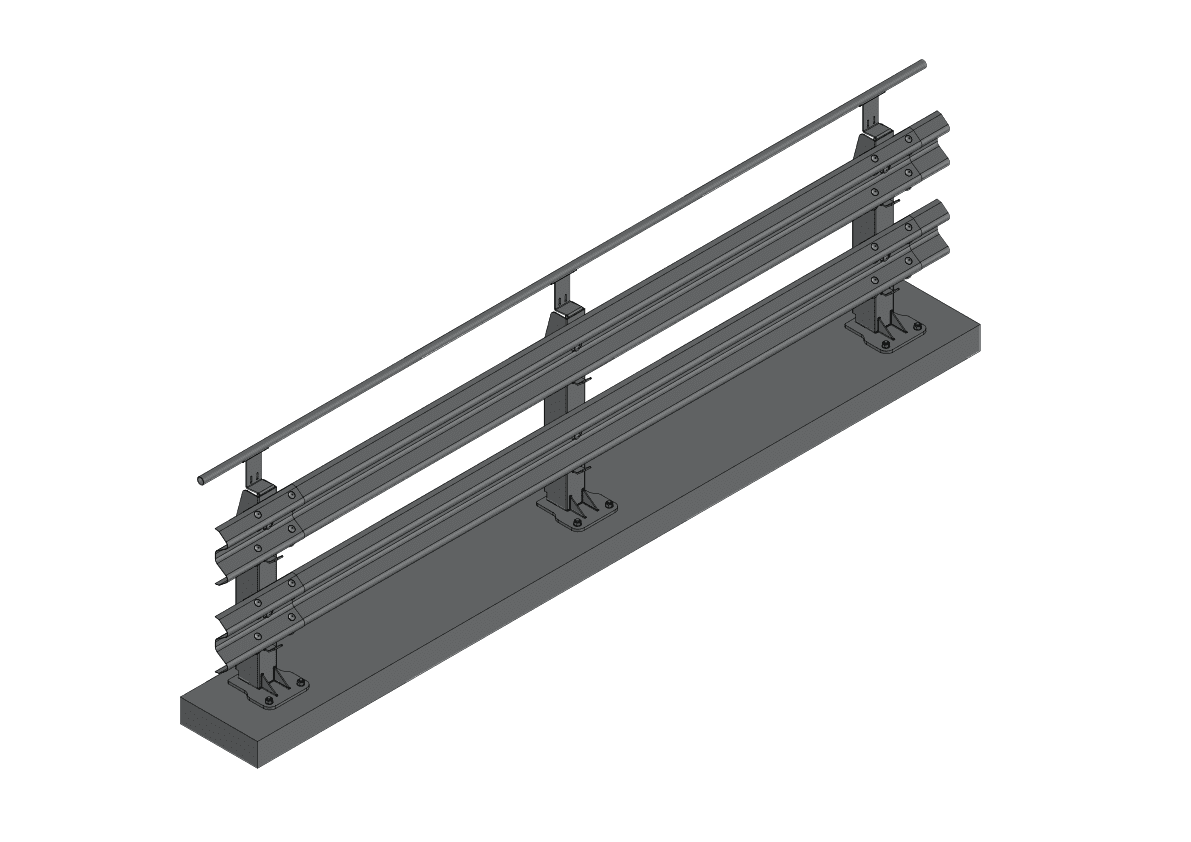

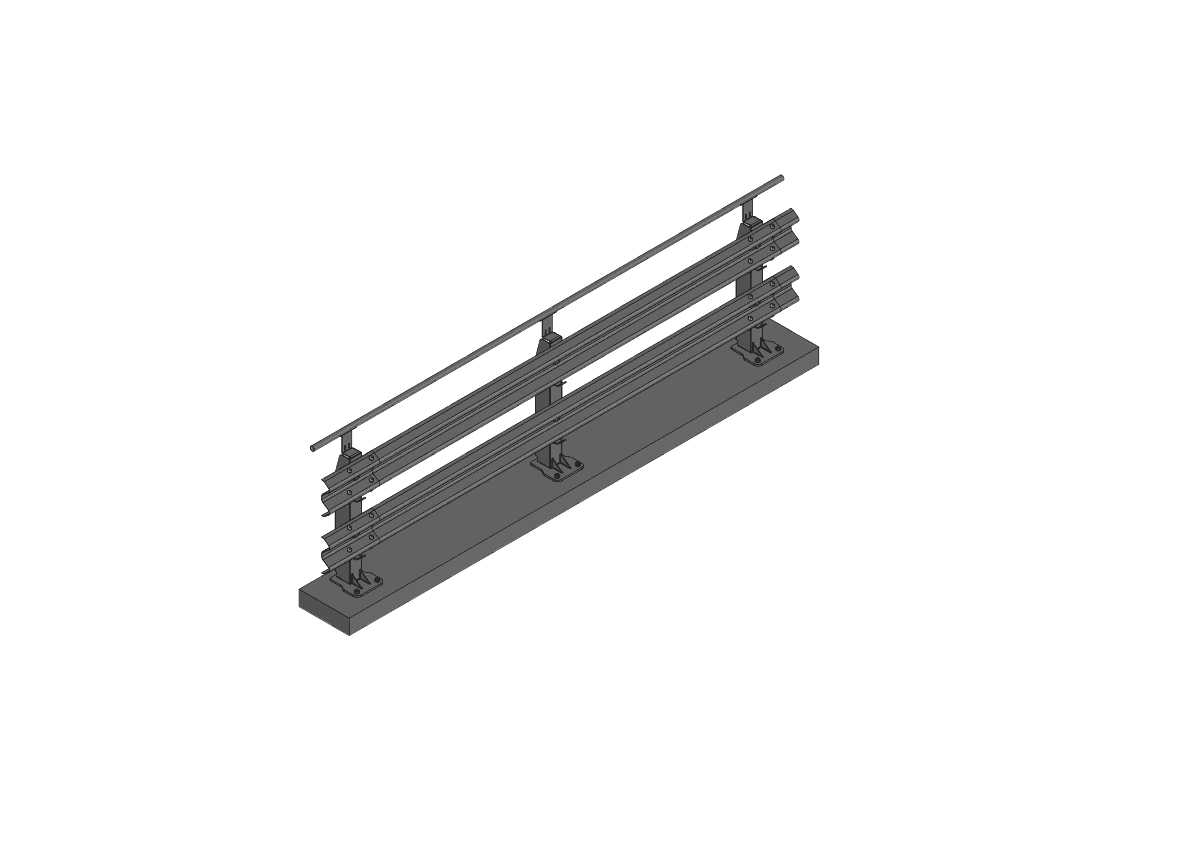

Kwik-Guard Double Height Top Mount Class 2

APPLICATIONS: Crash-Tested Safety Solutions for High-Traffic Commercial & Public Spaces

The Kwik-Guard Double Height Class 2 system is engineered to combine vehicle containment and pedestrian safety in a single solution. Crash-tested to AS1170 Clause 3.8 and rated to exceed 40kN impact force, the top-mount, base-plated design fixes securely into 200mm concrete slabs with 114mm embedment using TB20160G wedge anchors, delivering reliable performance across commercial and public infrastructure projects.

Related Projects

Industry Name

Case Study: Safety and Traffic Improvements on King Georges Road, NSW

Industry Name

Elizabeth Avenue, Clontarf Pedestrian Overpass

Industry Name

Coxs River Road Little Hartley NSW Upgrade

Industry Name

Costco Ardeer Project Completion

Industry Name

Keeping People Safe When Walking: Effective Pedestrian Safety Interventions

Guard R Guardrail

AVAILABLE NOW: Ready-to-Install Guardrails for Your Project

Kwik-Guard Double Height Class 2 systems are held in stock for rapid delivery, helping you stay on schedule with minimal downtime. Crash-tested to AS1170 Clause 3.8 and rated to exceed 40kN impact force, each unit includes a 1300mm-high galvanised handrail and base-plated, top-mount design. Securely fixed with TB20160G wedge anchors into 200mm slabs, these ready-to-install systems are built for immediate site deployment.

Book a Consultation: Get Project-Specific Support

Receive project-specific guidance from our technical experts, including compliance advice, system configuration, and AS1170 crash-tested certification support.
