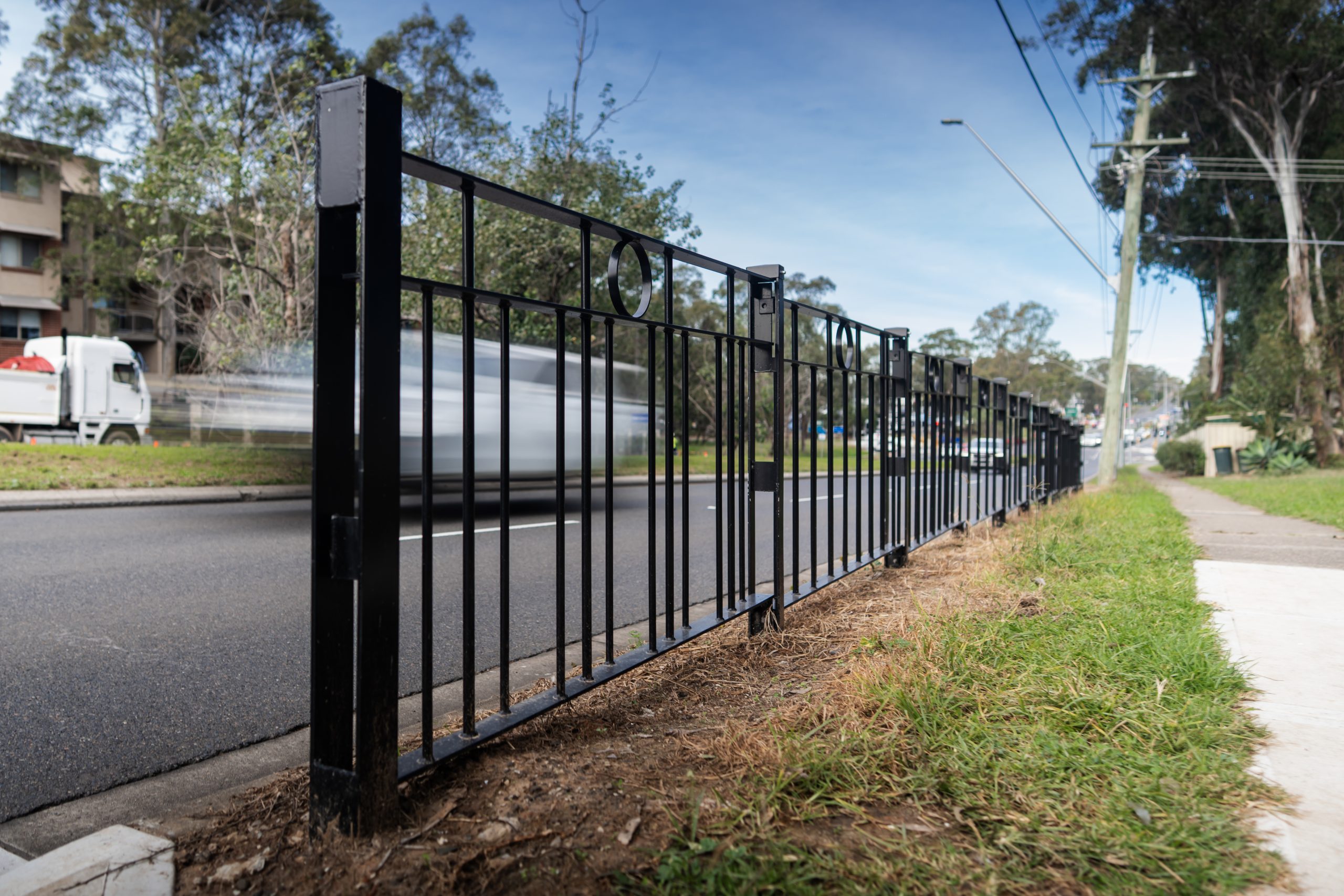

Street-Guard®️ RMS Type 5 pedestrian protective fencing is ideal for safeguarding busy public spaces. Made from durable steel, this fencing ensures long-lasting performance and impact resistance, providing robust protection for pedestrians.
Additionally, its design enhances the aesthetic appeal of any venue, combining safety with visual enhancement.
Order Today Guard-R Fencing maintains a large inventory for immediate dispatch in Sydney, Brisbane, and Melbourne.
Durable Design: Sturdy steel and secure connections withstand harsh weather and impacts.
Safety: Designed to collapse as a unit upon impact, reducing harm.
Versatile Applications: Suitable for high-traffic areas and public spaces.
Third Party Weld Testing: Welding complies with AS/NZS 1554.1:2014
Galvanising coating thickness: exceeds AS/NZS 4680 -2006 as per R201 Clause 3.9.4
Powder Coating thickness: exceeds AS 4506-2005 as per R201 Clause 3.9.4
Its robust design ensures reliable pedestrian access control, effectively enhancing safety.
The modular design allows for easy installation and adaptability, suitable for both temporary and permanent use.
To satisfy an array of distinctive needs, we’ve made available separate types of pedestrian fencing solutions:
This type of pedestrian fencing was originally made by the Roads and Maritime Services to prevent pedestrians from walking into traffic.
The Street-Guard ® reliable pedestrian protective fencing guarantees an array of functional benefits. A few of the main applications include safeguarding high-traffic areas, redirecting pedestrian traffic, and keeping pedestrians away from hazardous traffic locations.
Street-Guard Type 5 improves safety at intersections with a durable steel design that’s impact-safe and tested for compliance.
Strong yet aesthetic, Type 5 fencing enhances streetscapes with durable steel and coatings that withstand harsh weather.
Protect children with RMS-compliant Type 5 fencing—impact-resistant, collapse-safe, and tested to Australian standards.
Guide pedestrians safely in shopping centres with steel fencing built for durability, visibility, and long-term safety.
Type 5 fencing blends safety and aesthetics, keeping crowds secure at entertainment venues while enhancing the space.
Durable and compliant, Type 5 fencing protects visitors at attractions with an impact-safe design and weather resistance.
Type 5 fencing ensures safe, reliable pedestrian control at sports arenas, built tough with tested welds and coatings.
Take a look at the stocked items below for a better understanding of our RMS Pedestrian Fencing portfolio. Contact our team to discuss your project’s specifics and gain a better understanding of the various car park barrier options available.
The difference between Verge & Median panel designs is the pattern of the centre bars. These are angled to provide drivers with an unobstructed view of pedestrians or oncoming traffic.
Type 5 is a standard R0800 pedestrian-fence configuration used where pedestrians need to be guided away from unsafe road crossings while the project also calls for a more detailed streetscape appearance. It can be used on road verges, medians, school-zone works, arterial-road upgrades, intersections and other public spaces where Type 5 is nominated by the road authority or project designer.
Type 5 verge fencing is identified by R0800-23 and Type 5 median fencing by R0800-24 within the TfNSW Fencing Series. The full installation also relies on the applicable post, footing, base-plate, general and decorative details. Contractors should price against the complete drawing set because the panel drawing alone may not capture all components required for the finished fence run.
Both are TfNSW R0800 pedestrian-control fence configurations, but their profiles are different. Type 1 is the simpler flat-top arrangement and is widely recognised across NSW road projects, while Type 5 provides a more decorative architectural treatment. The difference should not be interpreted as Type 5 automatically being a ‘higher safety rating’. The correct type is the one nominated in the approved road or public-domain design.
Yes, where it is part of the approved road-safety and pedestrian-management design. Pedestrian fencing can help guide people toward designated crossing points and discourage direct entry into traffic, which is particularly relevant near schools and busy intersections. The exact fence location, length, setbacks, openings and crossing interfaces should be determined by the responsible traffic or road designer rather than by the fencing supplier alone.
It should not be specified as a vehicle-containment barrier. TfNSW pedestrian fencing is primarily a pedestrian-control device and is not interchangeable with an accepted road safety barrier. Where an errant-vehicle hazard exists, the road designer should assess whether a separate safety barrier is required. The pedestrian fence can then be coordinated with that system to maintain pedestrian guidance, visibility and access.
It can be used on structures where the project design specifically calls for the R0800 fencing configuration and an appropriate mounting detail is provided. Structural applications often require base-plated posts, coordinated fixings and careful interface detailing with concrete edges, waterproofing and other barriers. The bridge or structural engineer should confirm the substrate and fixing arrangement before the fencing package is ordered.
Lead time depends on current stock, project quantity, finish, special components and delivery location. Standard configurations and commonly requested finishes may be available faster than project-specific colours, non-standard panels or large staged packages. For tendering, request a current lead time rather than relying on an old website or previous-project figure, and confirm the programme again when the order is ready to be placed.
Guard-R Group’s Street-Guard® offering is supply only. We can provide product selection support, drawings, technical documentation and project pricing, while installation is completed by the project’s fencing or civil contractor. Keeping supply and installation scopes clear at tender stage helps avoid duplicated allowances and makes it easier for the installer to price labour, excavation, concrete footings, drilling and site-specific traffic-control requirements separately.
We have extensive experience in the creation of reliable, customised RMS pedestrian fencing solutions. Get in touch if you need steel fencing that meets all Australian state specifications. You will benefit from quality, affordability, and an excellent return on investment.
